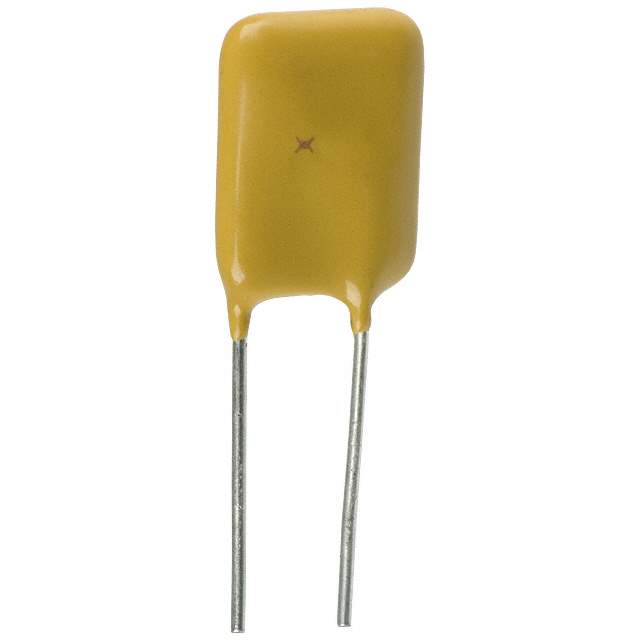

The LVR025S-2 is a resettable fuse, also known as a PolySwitch or PPTC (Polymeric Positive Temperature Coefficient) device, manufactured by Littelfuse. These devices are designed to protect electronic circuits from overcurrent conditions. Unlike traditional fuses that blow and need replacement, resettable fuses trip and increase their resistance significantly during an overcurrent event, limiting the current flow. Once the overcurrent condition is removed, the device cools down and returns to its low-resistance state, automatically resetting the circuit.

Applications:

• USB Ports: Used to protect USB ports on computers, laptops, and other electronic devices from overcurrent conditions.
• Battery Packs: Implemented in battery packs to protect the battery cells from short circuits and overloads.
• Game Consoles: Integrated into game consoles to protect the console's internal circuits from overcurrent faults.
• Power Supplies: Employed in power supplies to protect the power supply itself and the connected load from overcurrent conditions.
• Automotive Electronics: Used in various automotive electronic systems to protect circuits from short circuits and overloads.

Features:

• Resettable Protection: Provides resettable overcurrent protection, eliminating the need to replace blown fuses.
• Low Resistance: Offers a low resistance in its normal operating state, minimizing power losses.
• Fast Trip Time: Features a fast trip time, quickly limiting the current flow during an overcurrent event.
• Compact Size: Comes in a compact size for easy integration into space-constrained applications.
• RoHS Compliant: Compliant with RoHS (Restriction of Hazardous Substances) directives, ensuring environmental friendliness.

Benefits:

• Improved System Reliability: Provides reliable overcurrent protection, preventing damage to electronic circuits.
• Reduced Downtime: Eliminates the need to replace blown fuses, reducing downtime and maintenance costs.
• Enhanced Safety: Protects against potential hazards caused by overcurrent conditions, improving system safety.
• Cost Savings: Reduces the overall cost of ownership by eliminating the need for replacement fuses.
• Environmentally Friendly: Complies with environmental regulations, reducing the environmental impact of electronic products.

Additional Details:

The LVR025S-2 has a hold current of 0.25A and a trip current higher than that. The S indicates that it is a surface mount component. Detailed technical specifications, including voltage ratings, current ratings, and trip time characteristics, can be found in the device datasheet provided by Littelfuse. The datasheet also provides information on recommended soldering practices and handling precautions. It is critical to choose a PPTC with appropriate hold and trip current characteristics for the specific application.
