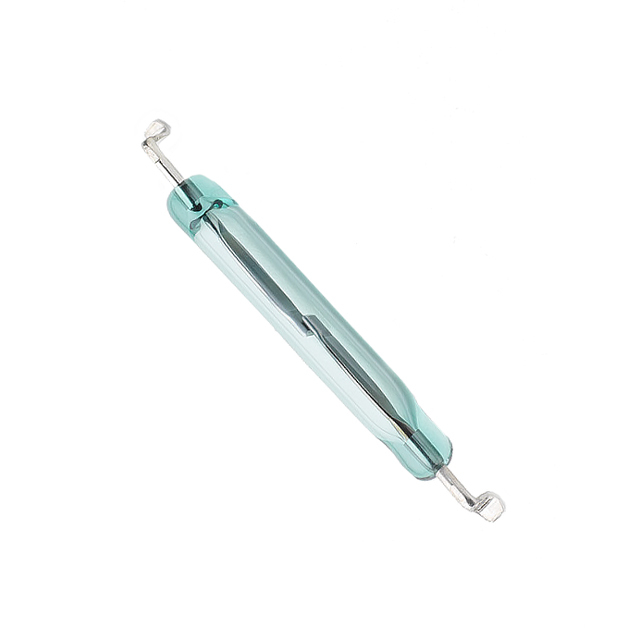

MASM-14R-15-20 Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MASM-14R-15-20

Part No MASM-14R-15-20
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesMagnetic, Reed Switches
Manufacturer Littelfuse Inc.
Series MASM-14
Part Status Active
Type Glass Body Reed
Circuit SPST-NO
Operate Range 15 ~ 20AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 0.6 ms
Release Time 0.2 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.760" (19.30mm)
Size - Body 0.090" Dia x 0.551" L (2.28mm x 14.00mm)
Height Above Board 0.112" (2.85mm)
Operating Temperature -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 1A (DC)
Ultra Librarian 3D Model Ultra Librarian MASM-14R-15-20 CAD Model
