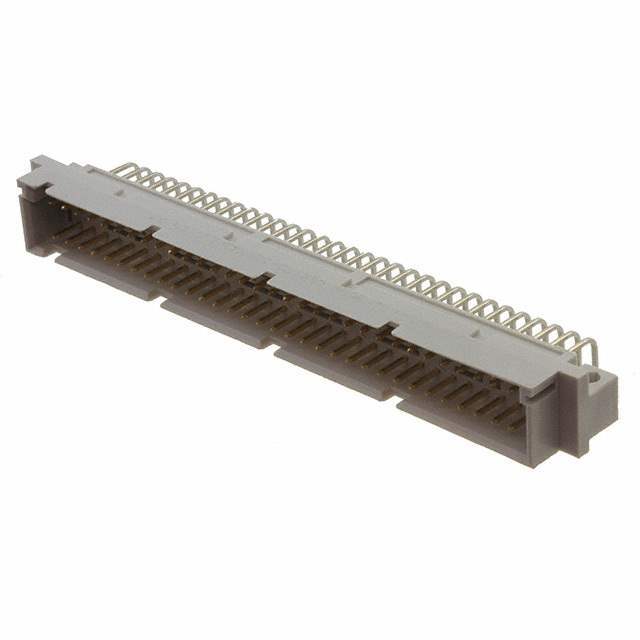

86094647113745ELFAmphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

86094647113745ELF

Part No 86094647113745ELF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN DIN HDR 96POS PCB RA GOLD
Datasheet
86094647113745ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging  Tray
Part Status Active
Connector Type Header, Male Pins
Number of Positions 96
Number of Positions Loaded 64
Mounting Type Through Hole, Right Angle
Operating Temperature -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Ultra Librarian 3D Model Ultra Librarian 86094647113745ELF CAD Model

Description

96 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
