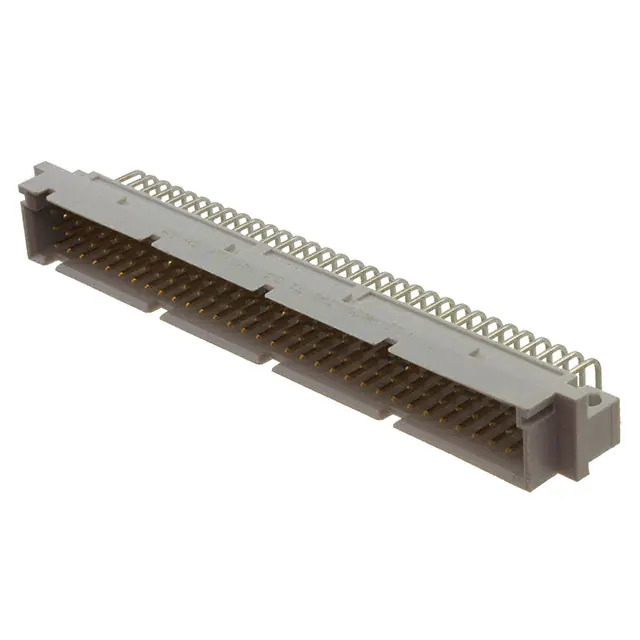

86093967113745ELF Amphenol
Same model may have multiple batches, images only for reference.

86093967113745ELF

Part No 86093967113745ELF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN HDR 96POS PCB RA GOLD / 96 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Amphenol ICC (FCI)
Series 8609
Package Tray
Product Status Active
Connector Type Header, Male Pins
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 3
Mounting Type Through Hole, Right Angle
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness -
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 8609396711
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364495-86093967113745ELF
Ultra Librarian 3D Model Ultra Librarian 86093967113745ELF CAD Model

Description

The 86093967113745ELF is a DIN 41612 backplane connector from Amphenol ICC (FCI).

  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 1.5A
  • Contact Finish: Gold
  • Number of Positions: 96
  • Number of Rows: 3
  • Loading: All positions loaded
  • Termination Style: Solder
  • Material Flammability Rating: UL94 V-0
  • Series: 8609
  • Status: Active
