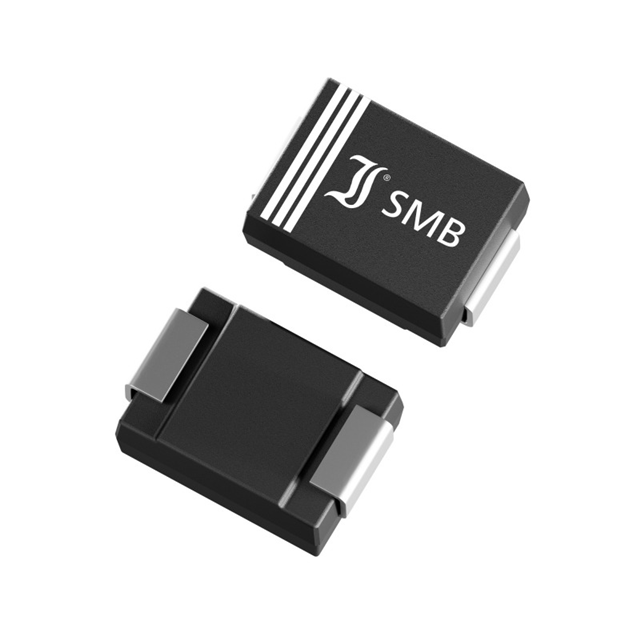

P6SMBJ24

Name: P6SMBJ24
Brand: Littelfuse Inc.
SKU: 1083685
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	P6SMBJ24
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 20.5VWM 34.86VC DO214 / 34.86V Clamp 18.4A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
Datasheet	P6SMBJ24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	P6SMBJ
Package	Tape & Reel (TR)
Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	20.5V
Voltage - Breakdown (Min)	21.6V
Voltage - Clamping (Max) @ Ipp	34.86V
Current - Peak Pulse (10/1000µs)	18.4A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMBJ)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Standard Package	3,000
Win Source Part Number	1083685-P6SMBJ24
Ultra Librarian 3D Model	Ultra Librarian P6SMBJ24 CAD Model

Alternative Products

Description

The P6SMBJ24 is a unidirectional zener diode designed for circuit protection applications.

Packaging: Tape and Reel
Standard Package: 3,000
Maximum Voltage Reverse Standoff: 20.5V
Minimum Breakdown Voltage: 21.6V
Voltage Clamping @ Ipp: 34.86V
Peak Pulse Power: 600W
Current Peak Pulse: 18.4A @ 10/1000µs
Mounting: SMD (SMT)
Package: DO-214AA, SMB
Supplier Device Package: DO-214AA (SMBJ)
Temperature Range: -55°C to 150°C
MSL Level: 1 (Unlimited)
HTSUS Code: 8541.10.0080
Manufacturer: Littelfuse Inc.
Status: Obsolete
