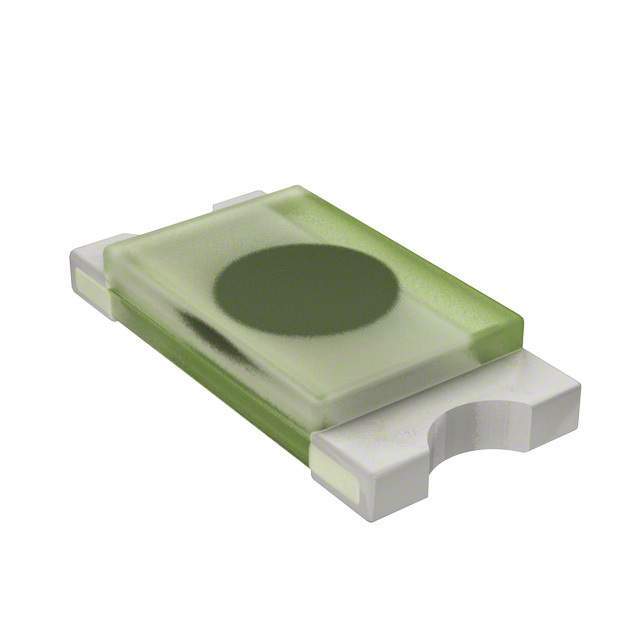

Same model may have multiple batches, images only for reference.

PGB1010603NR

Name: PGB1010603NR
Brand: Littelfuse Inc.
SKU: 273653
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PGB1010603NR
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 150VC 0603
Datasheet	PGB1010603NR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	24V
Max Clamping Voltage	150V (Typ)
Applications	General Purpose
Temperature Range - Operating	-65°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	0603 (1608 Metric)
Win Source Part Number	095734-PGB1010603NR
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Defence, Military & Aerospace
Family Name	PGB1010603
Introduction Date	July 19, 2007
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian PGB1010603NR CAD Model

Alternative Products

Description

The PGB1010603NR is a Zener type circuit protection component manufactured by Littelfuse Inc.

Application: General Purpose
Mounting Style: SMD (SMT)
Channel: Bidirectional
Family: PGB1010603
Category: Circuit Protection
Status: Active
Temperature Range: -65°C to 125°C (TJ)
Case/Package: 0603 (1608 Metric)
STAND-OFF Voltage (Vwm): 24V
Maximum Clamping Voltage: 150V (Typ)
Minimum Breakdown Voltage: No
Peak Pulse Current: No
Power Dissipation: No
Introduction Date: July 19, 2007
Compliance: Halogen Free
Commonly Used In: Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Defence, Military & Aerospace
