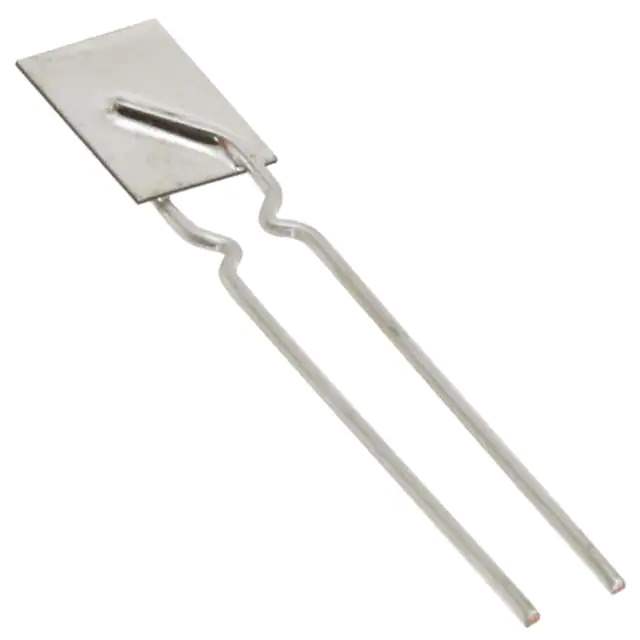

Same model may have multiple batches, images only for reference.

RUEF300U

Name: RUEF300U
Brand: Littelfuse Inc.
SKU: 892634
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RUEF300U
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 30V 3A RADIAL / Polymeric PTC Resettable Fuse 30V 3 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RUEF
Package	Bag
Product Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	3 A
Current - Trip (It)	6 A
Current - Max	100 A
Time to Trip	10.8 s
Resistance - Initial (Ri) (Min)	20 mOhms
Resistance - Post Trip (R1) (Max)	80 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Lead Spacing	0.199" (5.05mm)
Approval Agency	CQC, CSA, TUV, UL
Standard Package	500 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	892634-RUEF300U
Ultra Librarian 3D Model	Ultra Librarian RUEF300U CAD Model

Alternative Products

Description

The 892634-RUEF300U is a PTC resettable fuse component from Littelfuse Inc.

Series: PolySwitch®, RUEF
Type: Polymeric
Package: Bag
Dimensions: 0.449" L x 0.118" W (11.40mm x 3.00mm)
Maximum Seated Height: 0.650" (16.50mm)
Maximum Voltage Rating: 30V
Maximum Current Rating: 100A
Hold Current: 3A
Trip Current: 6A
Time to Trip: 10.8 seconds
Mounting: Through-Hole
Package: Radial, Disc
Temperature Range: -40°C to 85°C
Initial Resistance: 20 mOhms
Post-Trip Resistance: 80 mOhms
Status: Active
REACH: Not affected
MSL Level: Not applicable
HTSUS code: 8533.40.8070
Approvals: CQC, CSA, TUV, and UL
Warning: California Prop 65
