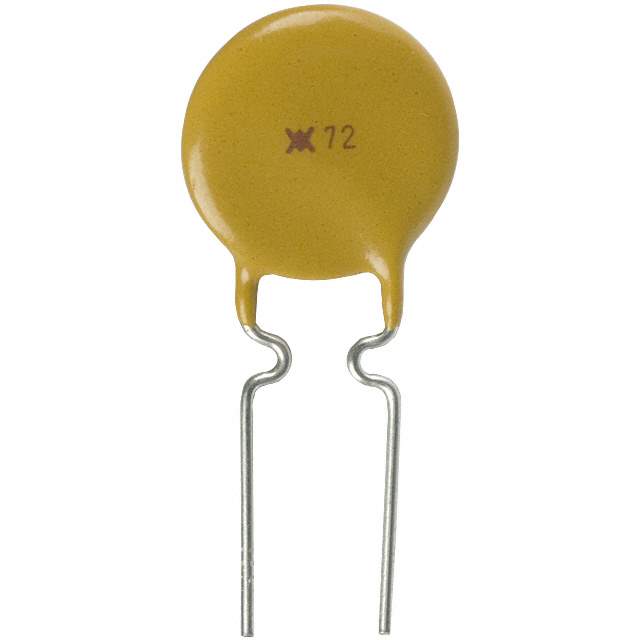

RXEF090-AP Real Image
Same model may have multiple batches, images only for reference.

RXEF090-AP

Part No RXEF090-AP
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 900MA RADIAL / PolySwitch Resettable Devices Radial-leaded Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Type Polymeric
Voltage - Max 72V
Current - Max 40A
Current - Hold (Ih) (Maximum) 900mA
Current - Trip (It) 1.8A
Time to Trip 7.2s
Resistance - Initial (Ri) (Min) 200 mOhms
Resistance - Post Trip (R1) (Maximum) 470 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.441" Dia x 0.118" T (11.20mm x 3.00mm)
Height - Seated (Maximum) 0.622" (15.80mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806790-RXEF090-AP
Ultra Librarian 3D Model Ultra Librarian RXEF090-AP CAD Model

Description

The RXEF090-AP is a polymeric positive temperature coefficient (PPTC) device manufactured by Littelfuse Inc..

  • Maximum Voltage: 72V
  • Maximum Current: 40A
  • Initial Resistance: 200mOhms
  • Hold Current: 900mA
