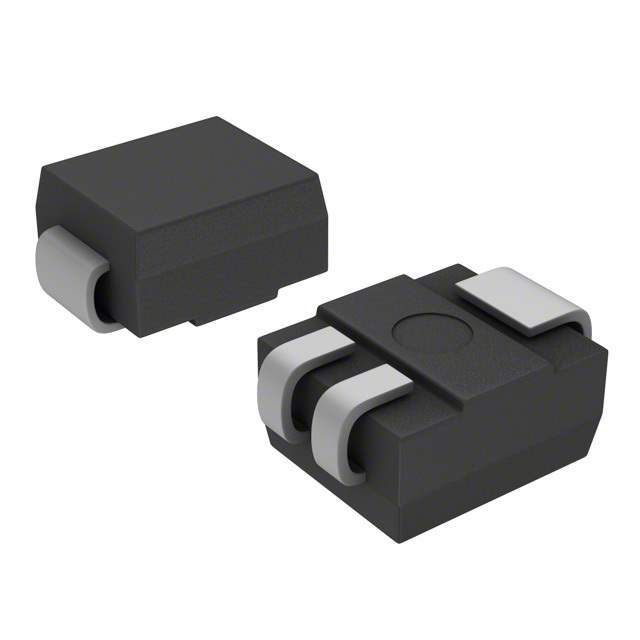

S2N1RP Real Image
Same model may have multiple batches, images only for reference.

S2N1RP

Part No S2N1RP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR NON-SENS 200V 1A DO-214
Datasheet
S2N1RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Off State 200V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 10mA
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 640mA
Current - On State (It (RMS)) (Max) 1A
Current - Hold (Ih) (Max) 30mA
Current - Off State (Max) 10μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 25A, 30A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package Compak
Win Source Part Number 063090-S2N1RP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S2N1RP CAD Model

Description

The Littelfuse Inc. 063090-S2N1RP is an obsolete electronic component that is designed for use in discrete semiconductor products.

  • Popularity: medium
  • Supply and demand status: balanced
  • Voltage off state: 200V
  • Voltage gate trigger: 1.5V
  • Current on state (It (AV)) (Max): 640mA
  • Current off state: 10μA

This electronic component is perfect for use in a wide range of applications, including power supplies, motor control circuits, and more.
