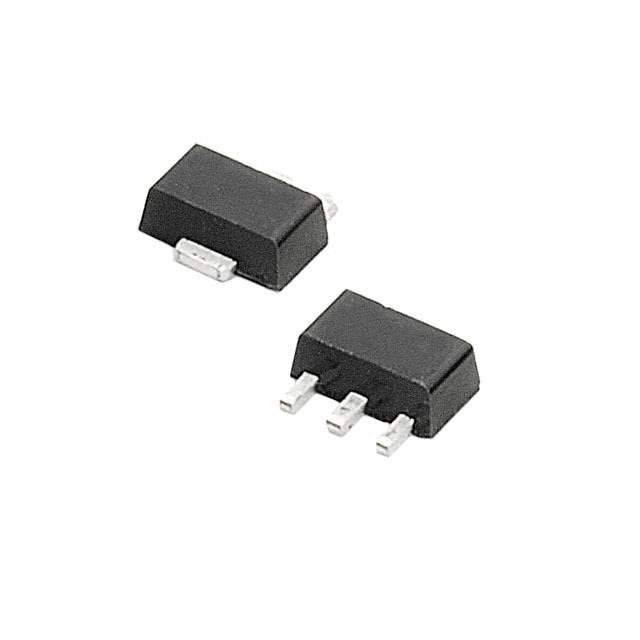

S4X8BSRP1 Real Image
Same model may have multiple batches, images only for reference.

S4X8BSRP1

Part No S4X8BSRP1
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S4X8BSRP1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Tape & Reel (TR)
Voltage - Off State 400 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 200 µA
Voltage - On State (Vtm) (Max) 1.7 V
Current - On State (It (AV)) (Max) 510 mA
Current - On State (It (RMS)) (Max) 800 mA
Current - Hold (Ih) (Max) 5 mA
Current - Off State (Max) 3 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8A, 10A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case TO-243AA
Supplier Device Package SOT-89
Other Names -S4X8BSRP1
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278932-S4X8BSRP1
Ultra Librarian 3D Model Ultra Librarian S4X8BSRP1 CAD Model

Description

The Littelfuse Inc. electronic component is a thyristor - SCR with a sensitive gate. It has a voltage off-state of 400V and a voltage on-state (Vtm) (Max) of 1.7V. It has a temperature range of -40°C ~ 125°C and a package/case of TO-243AA. The supplier device package is SOT-89.
