Same model may have multiple batches, images only for reference.

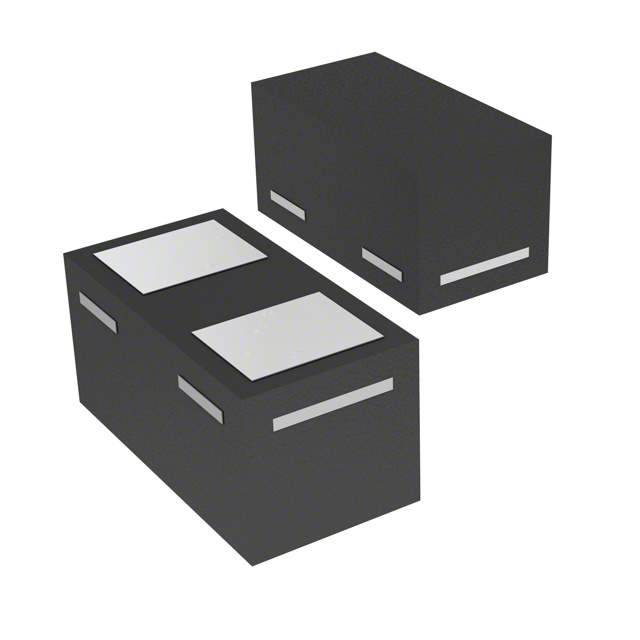

SESD0201X1UN-0030-088 Real Image
Same model may have multiple batches, images only for reference.

SESD0201X1UN-0030-088

Part No SESD0201X1UN-0030-088
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 13VC DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 8.8V (Typ)
Max Clamping Voltage 13V (Typ)
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Applications Automotive, HDMI
Capacitance @ Frequency 0.3pF @ 3GHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 2-XDFN (0.30x0.60)
Win Source Part Number 1095186-SESD0201X1UN-0030-088
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SESD0201X1UN-0030-088 CAD Model

Description

The Littelfuse Inc. It is a balance in supply and demand status.

  • Manufacturer: Littelfuse Inc.
  • Win Source Part Number: 1095186-SESD0201X1UN-0030-088
  • Type: Zener
  • Applications: Automotive and HDMI
  • Capacitance: 0.3pF @ 3GHz
  • Mounting: SMD (SMT)
  • STAND-OFF Voltage (Vwm): 7V (Max)
  • Minimum Breakdown Voltage: 8.8V (Typ)
  • Max Clamping Voltage: 13V (Typ)
  • Peak Pulse Current(Ippm): 2.5A (8/20μs)
