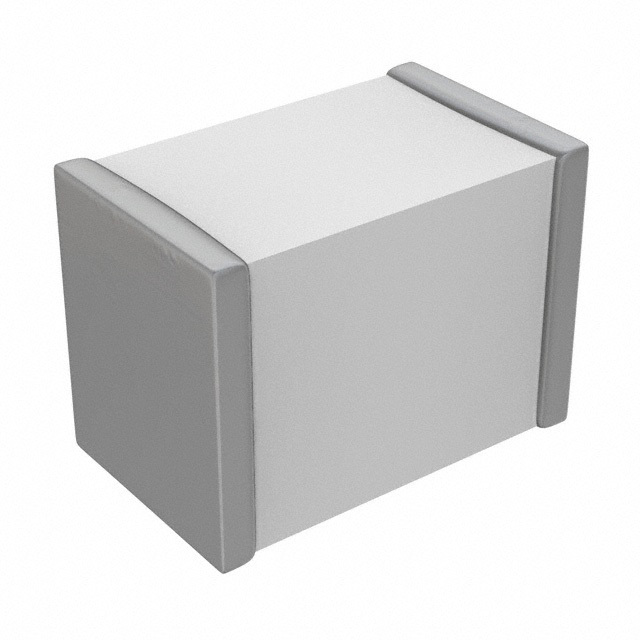

SG75 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SG75

Part No SG75
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 75V 2KA 2 POLE SURFACE MOUNT / Gas Discharge Tube 75 V 2000A (2kA) 2 Pole Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series SG
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 75 V
Impulse Discharge Current (8/20µs) 2000A (2kA)
Number of Poles 2
Fail Short No
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 806883-SG75
Ultra Librarian 3D Model Ultra Librarian SG75 CAD Model

Description

The Littelfuse Inc. SG75 is a gas discharge tube arrester (GDT) designed for circuit protection in electronic systems.

  • Series: SG
  • Mounting: Surface Mount
  • Package: 1812 (4532 Metric)
  • Standard Package: 2,000 pcs
  • DC Spark Over Voltage: 75 V
  • Impulse Discharge Current: 2000A
  • Applications: Power supplies, telecommunications equipment, industrial controls
  • Active Product: Yes
  • California Prop 65 Compliant: Yes
