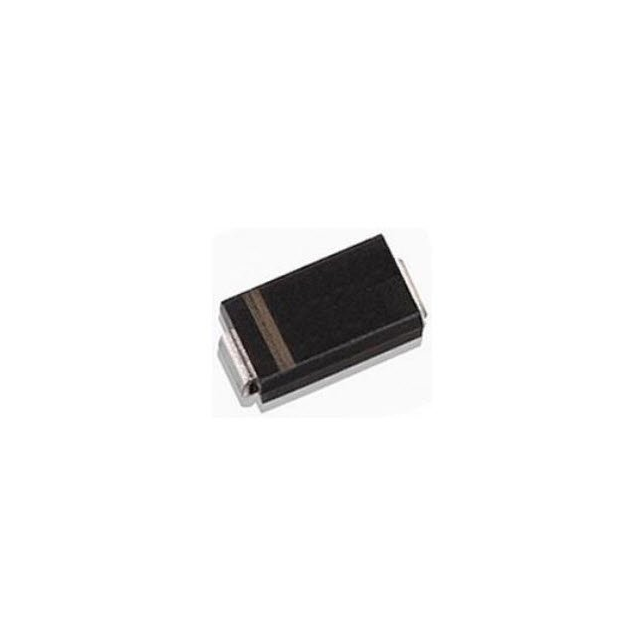

Same model may have multiple batches, images only for reference.

SMAJ180C

Name: SMAJ180C
Brand: Littelfuse Inc.
SKU: 794603
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMAJ180C
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 180VWM 306.6VC SMA / TVS Diode Single Bi-Dir 180V 400W 2-Pin SMA T/R
Datasheet	SMAJ180C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	SMAJ
Packaging	Reel package
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	180V
Minimum Breakdown Voltage	190.35V
Maximum Clamping Voltage	306.6V
Current - Peak Pulse (10/1000μs)	1.4A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Package	DO-214AC, SMA
Manufacturer Package	DO-214AC (SMA)
Win Source Part Number	794603-SMAJ180C
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SMAJ180C
Introduction Date	June 01, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SMAJ180C CAD Model

Alternative Products

Description

The SMAJ180C is a Zener diode from Littelfuse Inc. designed for general applications.

Applications: General
Package: DO-214AC, SMA
Temperature Range: -55°C to 150°C (TJ)
Channel: Bidirectional
Voltage Reverse Standoff: 180V
Peak Pulse Current: 1.4A (10/1000μs)
Peak Pulse Power: 400W
Minimum Breakdown Voltage: 190.35V
Maximum Clamping Voltage: 306.6V
Regulations: Halogen-free
Popularity: Medium
Estimated EOL Date: 2027
