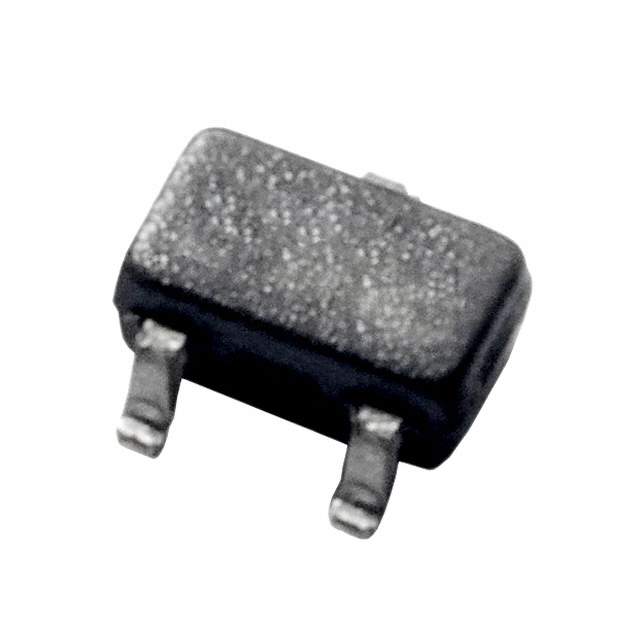

SP1002-01JTG Real Image
Same model may have multiple batches, images only for reference.

SP1002-01JTG

Part No SP1002-01JTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 16VC SC703
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 6V (Max)
Minimum Breakdown Voltage 8V
Max Clamping Voltage 16V
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-3
Win Source Part Number 1101143-SP1002-01JTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SP1002-01JTG CAD Model

Description

The SP1002-01JTG is a Zener diode that is designed for general purpose applications.

  • Channels: bidirectional channel diode
  • Mounted: on a surface-mount device (SMD) package.
  • Stand-Off Voltage: 6V (Max)
  • Minimum Breakdown Voltage: 8V
  • Maximum Clamping Voltage: 16V
  • Peak Pulse Current: 2A (8/20μs)
  • Package: SC-70-3
  • Power Dissipation: -.
