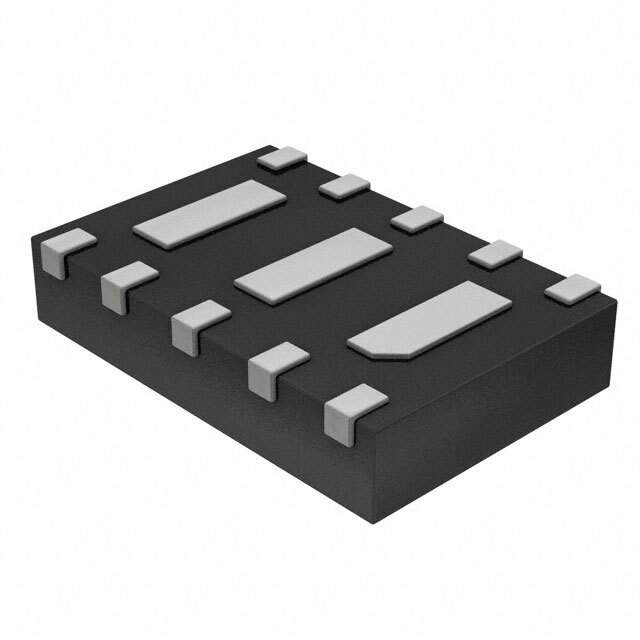

SP2574NUTG Real Image
Same model may have multiple batches, images only for reference.

SP2574NUTG

Part No SP2574NUTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 2.5V 12V 10UDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff 2.5V (Maximum)
Voltage - Breakdown (Minimum) 3V
Voltage - Clamping (Maximum) at Ipp 12V
Current - Peak Pulse (10/1000μs) 25A (8/20μs)
Power - Peak Pulse 1000W (1kW)
Power Line Protection Yes
Applications Automotive, Ethernet
Capacitance at Frequency 3.8pF at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 10-UDFN Exposed Pad
Supplier Device Package 10-UDFN (3x2)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 720508-SP2574NUTG
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SP2574NUTG CAD Model

Description

This MagnaChip Semiconductor product is a circuit protection device designed for use in automotive and ethernet applications. The Win Source Part Number for this product is 720508-SP2574NUTG and it comes in a reel packaging.

  • Device Type: Steering (rail to rail)
  • Channels: 4 (unidirectional)
  • Current Peak Pulse: 25A (8/20μs)
  • Power Peak Pulse: 1000W (1kW)
  • Protection: Power line
  • Manufacturer Package: 10-UDFN (3x2)
  • Voltage Reverse Standoff: 2.5V (Maximum)
