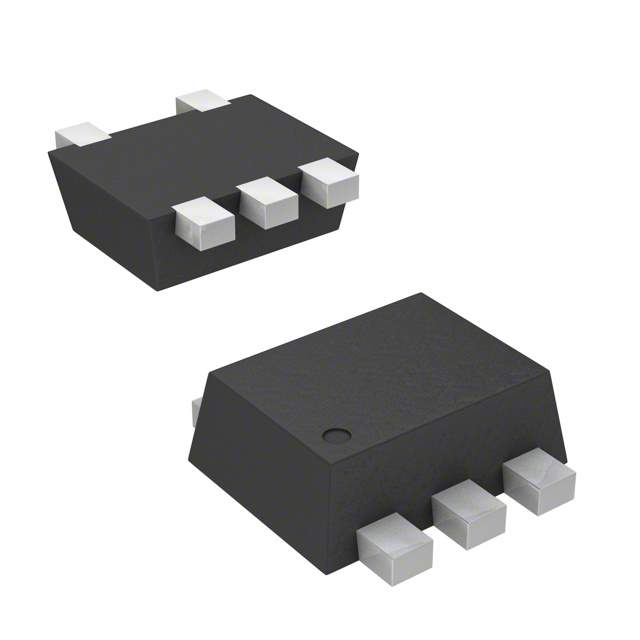

SP3003-02XTG Real Image
Same model may have multiple batches, images only for reference.

SP3003-02XTG

Part No SP3003-02XTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 15VC SOT553
Datasheet
SP3003-02XTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 6V (Max)
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-553
Win Source Part Number 030596-SP3003-02XTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SP3003-02XTG CAD Model

Description

The Littelfuse Inc. Steering Diode is a high-quality electronic component that is designed for use in general-purpose applications.

  • Diode Type: unidirectional
  • Channels: two
  • Package: SOT-553
  • Stand-off Voltage: 6V (Max)
  • Peak Pulse Current: 2.5A (8/20μs)
  • Supply and Demand Status: sufficient
  • Packaging: reel, 850 units
