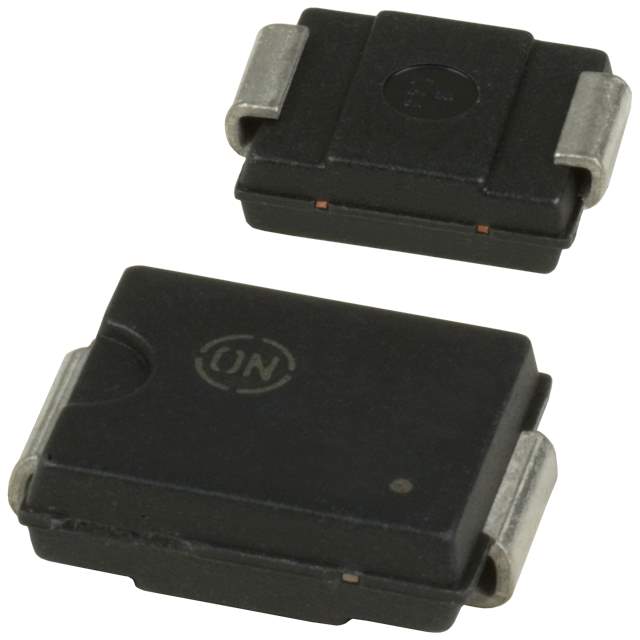

SZ1SMC22AT3G

Part No SZ1SMC22AT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 22VWM 35.5VC SMC  /  35.5V Clamp 42.2A Ipp Tvs Diode Surface Mount SMC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 42.2A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -SZ1SMC22AT3G,SZ1SMC22AT3G-ND,F11585CT,F11585TR,F11585DKR
Standard Package 2,500
Win Source Part Number 1014373-SZ1SMC22AT3G
Ultra Librarian 3D Model Ultra Librarian SZ1SMC22AT3G CAD Model

Description

The SZ1SMC22AT3G is a TVS diode designed for circuit protection.

  • Voltage: 22V
  • Maximum Clamping Voltage: 35.5V @ 42.2A
  • Automotive: AEC-Q101 series
