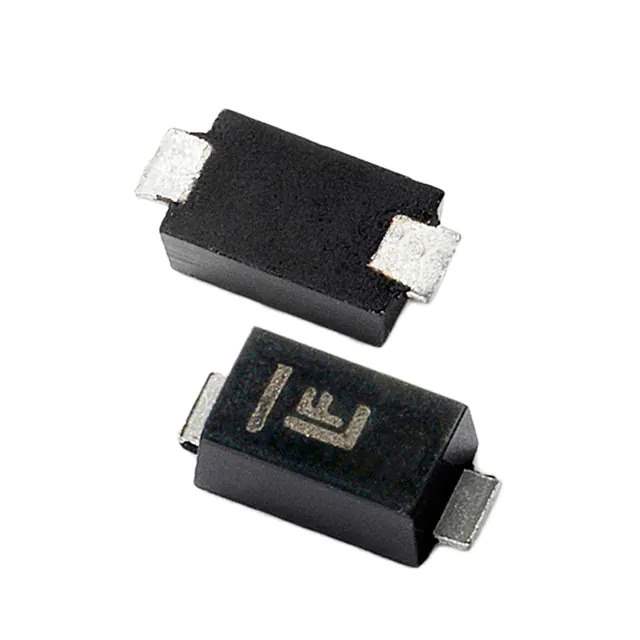

TPSMF4L26A Real Image
Same model may have multiple batches, images only for reference.

TPSMF4L26A

Part No TPSMF4L26A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 26VWM 42.1VC SOD123FL
Datasheet
TPSMF4L26A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMF4L
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 9.5A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number TPSMF4L
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 852108-TPSMF4L26A
Ultra Librarian 3D Model Ultra Librarian TPSMF4L26A CAD Model

Description

The TPSMF4L26A is a surface mount TVS diode designed for automotive applications.

  • Series: TPSMF4L
  • Qualification: AEC-Q101 qualified
  • Reverse Standoff Voltage: 26V
  • Breakdown Voltage: 28.9V
  • Clamping Voltage: 42.1V @ 9.5A
  • Power Rating: 400W
  • Type: Unidirectional
  • Package: SOD-123F
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Littelfuse Inc.
  • Application: Automotive circuit protection
