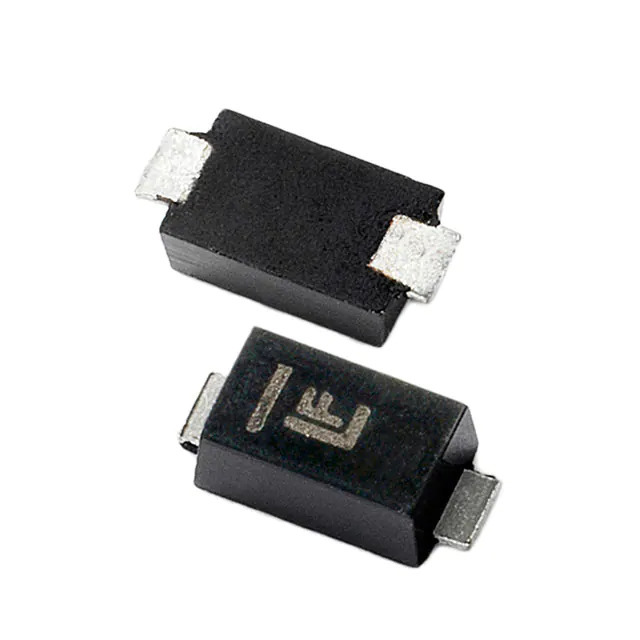

TPSMF4L7.0A

Name: TPSMF4L7.0A
Brand: Littelfuse Inc.
SKU: 1355796
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPSMF4L7.0A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 7VWM 12VC SOD123FL / 12V Clamp 30.9A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet	TPSMF4L7.0A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, TPSMF4L
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V
Voltage - Breakdown (Min)	7.78V
Voltage - Clamping (Max) @ Ipp	12V
Current - Peak Pulse (10/1000µs)	30.9A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-123F
Supplier Device Package	SOD-123F
Base Product Number	TPSMF4L
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1355796-TPSMF4L7.0A
Ultra Librarian 3D Model	Ultra Librarian TPSMF4L7.0A CAD Model

Alternative Products

Description

The 1355796-TPSMF4L7.0A is a surface mount TVS diode from Littelfuse Inc.

Series: TPSMF4L
Application: Automotive
Channel: Unidirectional
Reverse Standoff Voltage: 7V
Breakdown Voltage: 7.78V
Clamping Voltage: 12V @ peak pulse current
Peak Pulse Current: 30.9A (10/1000µs waveform)
Power Rating: 400W
REACH: Compliant
ECCN: EAR99
Package: SOD-123F
