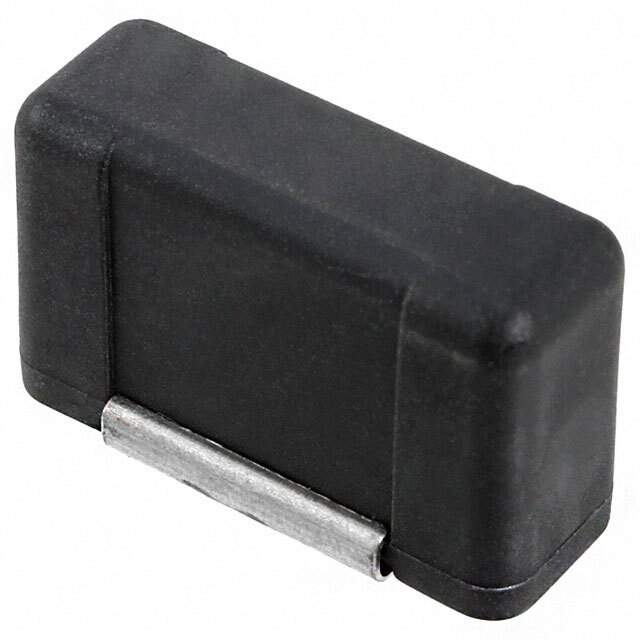

Same model may have multiple batches, images only for reference.

TS600200FRAB0.52

Name: TS600200FRAB0.52
Brand: Littelfuse Inc.
SKU: 798446
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TS600200FRAB0.52
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 0.20A SMD / PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 60VDC 3A 2.5W 12s 4Ohm SMD Solder Pad 19.4 X 8.3 X 12.3mm T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	PolySwitch, TS600
Packaging	Reel package
Type	Polymeric
Voltage - Max	60V (600V Int)
Current - Max	3A
Current - Hold (Ih) (Maximum)	200mA
Current - Trip (It)	400mA
Time to Trip	10s
Resistance - Initial (Ri) (Minimum)	4 Ohm
Resistance - Post Trip (R1) (Maximum)	13.5 Ohm
Operating Temperature Range	-40°C ~ 85°C
Mounting	SMD
Package	2-SMD
Dimension	0.742" L x 0.297" W (18.85mm x 7.55mm)
Thickness (Maximum)	0.484" (12.30mm)
Approvals	CSA, TUV, UL
Win Source Part Number	798446-TS600200FRAB0.52
Popularity	Medium
Supply and Demand Status	Balance
Family Name	TS600
Introduction Date	January 01, 2007
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian TS600200FRAB0.52 CAD Model

Alternative Products

Description

The Littelfuse Inc. TS600200FRAB0.52 is a polymeric electronic component.

Series: PolySwitch, TS600
Maximum Voltage: 60V (600V Int)
Maximum Current: 3A
Trip Current: 400mA
Time to Trip: 10s
Package Type: 2-SMD
Mounting Type: SMD
Approvals: CSA, TUV, UL
Dimension: 0.742" L x 0.297" W (18.85mm x 7.55mm)
Thickness: 0.484" (12.30mm)
Initial Resistance: 4 Ohm
Post-Trip Resistance: 13.5 Ohm
Current Hold (Ih) (maximum): 200mA
Operating Temperature: -40°C to 85°C
