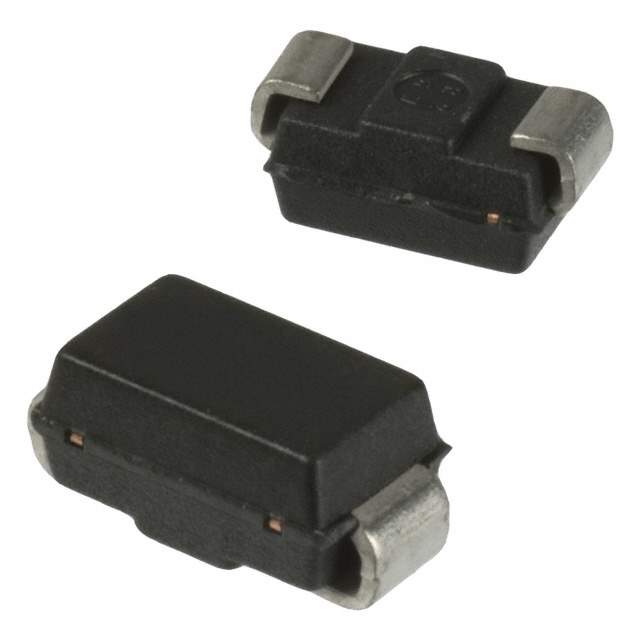

TVA220NSA-L Real Image
Same model may have multiple batches, images only for reference.

TVA220NSA-L

Part No TVA220NSA-L
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description THYRISTOR 220V 150A SMA
Datasheet
TVA220NSA-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Breakover 300V
Voltage - Off State 220V
Voltage - On State 4V
Current - Peak Pulse (8/20μs) 150A
Peak Pulse Current(Ippm) 50A
Current - Hold (Ih) 150mA
Number of Elements 1
Capacitance 33pF
Mounting SMD (SMT)
Dimension DO-214AC, SMA
Win Source Part Number 1114909-TVA220NSA-L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TVA220NSA-L CAD Model

Description

The Littelfuse Inc. 1114909-TVA220NSA-L is a single element bidirectional thyristor designed for circuit protection.

  • Capacitance: 33pF
  • Voltage Off State: 220V
  • Voltage Breakover: 300V
  • Voltage On State: 4V
  • Current Peak Pulse (8/20μs): 150A
  • Current Hold (Ih): 150mA
  • Package: DO-214AC, SMA
  • Peak Pulse Current (Ippm): 50A
  • Status: Now obsolete (EOL).
  • Application: This thyristor is commonly used for circuit protection.
