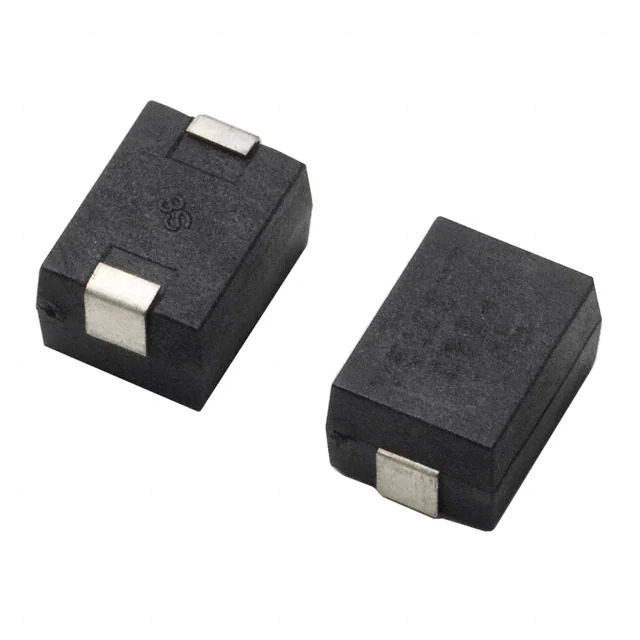

V320SM7 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

V320SM7

Part No V320SM7
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 513.5V 1.2KA 2SMD / 513.5 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2-SMD, J-Lead
Datasheet
V320SM7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series SM7
Package Tape & Reel
Product Status Active
Maximum AC Volts 320 V
Maximum DC Volts 420 V
Varistor Voltage (Min) 462 V
Varistor Voltage (Typ) 513.5 V
Varistor Voltage (Max) 565 V
Current - Surge 1.2 kA
Energy 25J
Number of Circuits 1
Capacitance @ Frequency 65 pF @ 1 MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Features -
Mounting Type Surface Mount, MLCV
Package / Case 2-SMD, J-Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361139-V320SM7
Ultra Librarian 3D Model Ultra Librarian V320SM7 CAD Model

Description

The SM7 series from Littelfuse Inc. is a surface mount transient voltage suppressor (TVS) varistor.

  • Maximum AC Voltage: 320V
  • Maximum DC Voltage: 420V
  • Varistor Voltage: 462V to 565V
  • Surge Current: 1.2kA
  • Energy Rating: 25J
  • Package / Case: 2-SMD, J-Lead
  • RoHS Compliant: Yes
  • REACH: Unaffected
