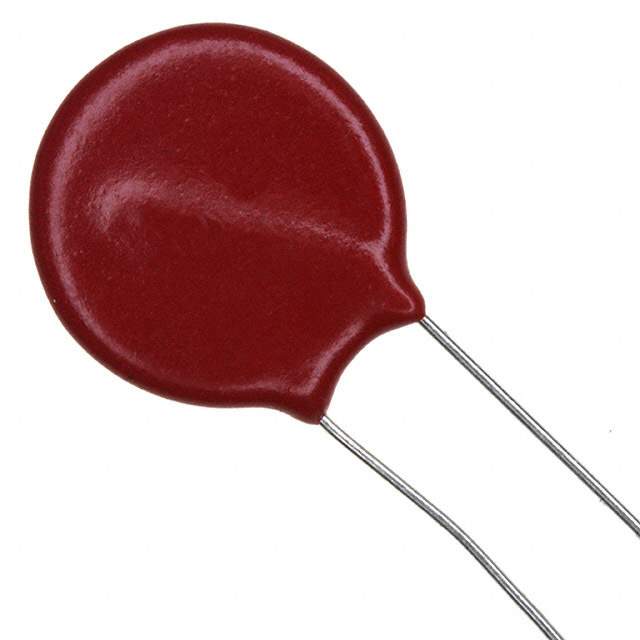

V420LA20AP Real Image
Same model may have multiple batches, images only for reference.

V420LA20AP

Part No V420LA20AP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 680V 4.5KA DISC 14MM
Datasheet
V420LA20AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 612V
Varistor Voltage (Typ) 680V
Varistor Voltage (Max) 748V
Current - Surge 4.5kA
Energy 90J
Number of Circuits 1
Maximum AC Volts 420VAC
Maximum DC Volts 560VDC
Capacitance @ Frequency 300pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 14mm
Win Source Part Number 121972-V420LA20AP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V420LA20AP CAD Model

Description

The V420LA20AP is a varistor designed for circuit protection.

  • Manufacturer: Littelfuse Inc.
  • Packaging: Bulk
  • Circuit: One
  • Mounting Style: Through-Hole
  • Capacitance @ 1MHz: 300pF
  • Varistor Voltage (min): 612V
  • Varistor Voltage (typ): 680V
  • Varistor Voltage (max): 748V
  • Surge Current: 4.5kA
  • Maximum AC Voltage: 420VAC
  • Maximum DC Voltage: 560VDC
  • Energy Rating: 90J
  • Disc Dimension: 14mm
  • Operating Temperature: -55°C to 85°C (TA)
