Same model may have multiple batches, images only for reference.

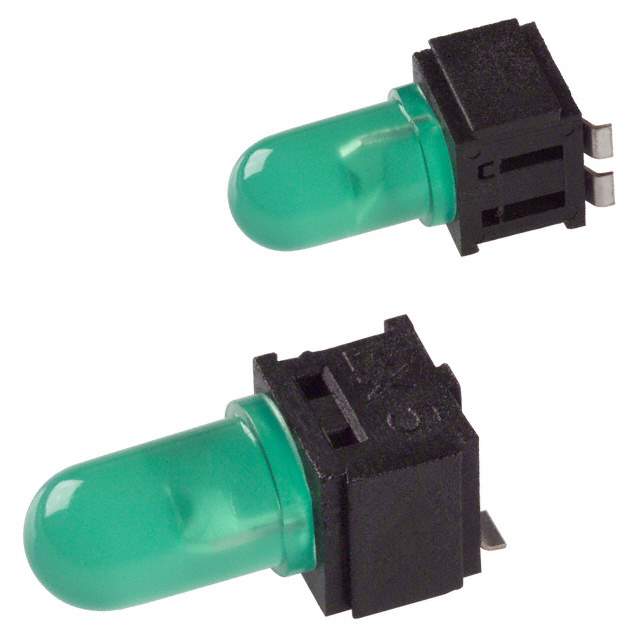

SMF-HM1530GD-509 Real Image
Same model may have multiple batches, images only for reference.

SMF-HM1530GD-509

Part No SMF-HM1530GD-509
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA 565NM GREEN DIFF SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 5mm, T-1 3/4 Surface Mount, Right Angle
Datasheet
SMF-HM1530GD-509 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V
Mounting Type Surface Mount, Right Angle
Base Product Number SMF-HM1530
Other Names SMFHM1530GD509,67-1621,67-1621R
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238213-SMF-HM1530GD-509
Ultra Librarian 3D Model Ultra Librarian SMF-HM1530GD-509 CAD Model

Description

The SMF-HM1530GD-509 is a green LED circuit board indicator, arrays, light bars, bar graphs optoelectronic component that is ideal for use in a variety of electronic applications.

  • Viewing Angle: 60 degrees
  • Millicandela Rating: 30mcd
  • Voltage Rating: 2.2V
  • Current: 20mA
  • Wavelength-Peak: 565nm
  • Package: surface-mount, right-angle package
  • Lens Style: round with a domed top
  • Lens Size: 5mm, T-1 3/4
  • Supplier: Lumex Opto/Components Inc.
