Same model may have multiple batches, images only for reference.

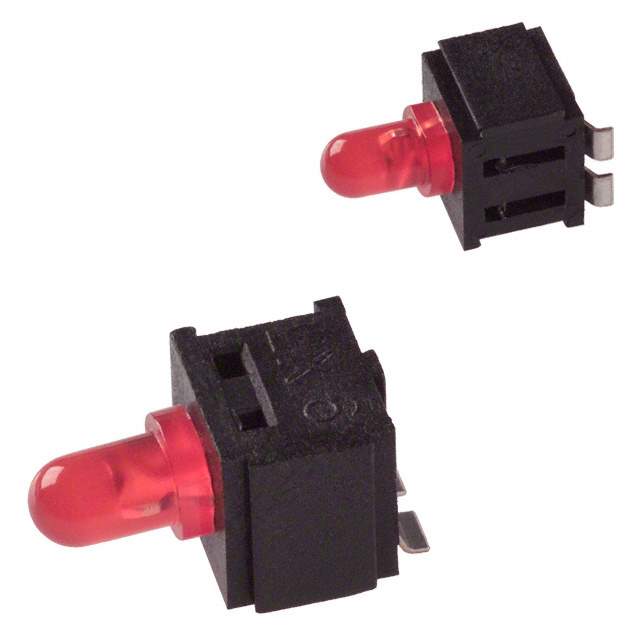

SMF-HM1530SRD-305 Real Image
Same model may have multiple batches, images only for reference.

SMF-HM1530SRD-305

Part No SMF-HM1530SRD-305
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA 660NM SUP RED DIFFSMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.7V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
Datasheet
SMF-HM1530SRD-305 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 660nm
Configuration Single
Current 20mA
Millicandela Rating 80mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 1.7V
Mounting Type Surface Mount, Right Angle
Base Product Number SMF-HM1530
Other Names 67-1644R,SMFHM1530SRD305,67-1644
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238152-SMF-HM1530SRD-305
Ultra Librarian 3D Model Ultra Librarian SMF-HM1530SRD-305 CAD Model

Description

The Lumex Opto/Components Inc. SMF-HM1530SRD-305 is an optoelectronic component with a red color.

  • Win Source Part Number: 1238152-SMF-HM1530SRD-305
  • Configuration: Single configuration
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 80mcd
  • Wavelength Peak: 660nm
  • Operating Current: 20mA
  • Lens Type: Diffused, tinted
  • Mounting Type: Surface mount, right angle
  • Lens Style: Round with a domed top
  • Lens Size: 3mm, T-1
  • REACH: Unaffected by REACH
  • ECCN: EAR99
