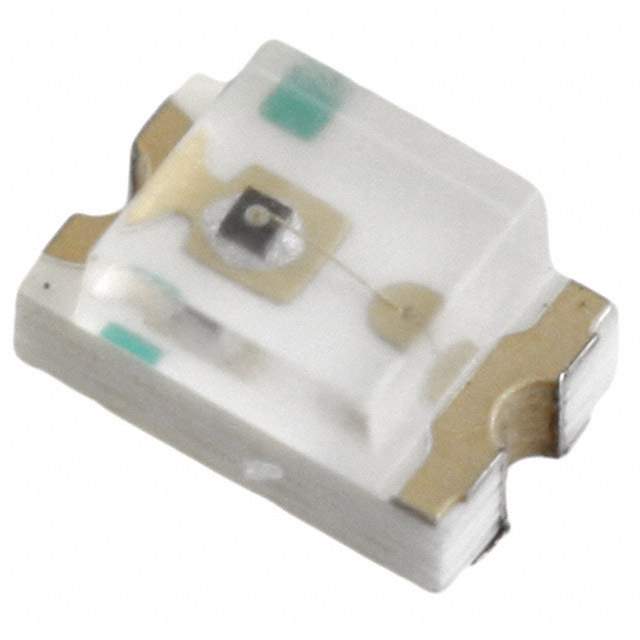

SML-LX0805IC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0805IC-TR

Part No SML-LX0805IC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD / Red LED Indication - Discrete 2V 0805 (2012 Metric)
Datasheet
SML-LX0805IC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 9mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 635nm
Package / Case 0805 (2012 Metric)
Dimension 2.00mm L x 1.25mm W
Height (Max) 1.20mm
Base Product Number SML-LX0805
Other Names Q3174049,67-2189-6,SML-LX0805IC-TR,67-2189-2,67-2189-1
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241843-SML-LX0805IC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0805IC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX0805IC-TR is a red LED indication component that is perfect for various applications.

  • Viewing Angle: 140 degrees
  • Forward Voltage (typical): 2V
  • Millicandela Rating: 9mcd
  • Wavelength: 635nm
  • Height: 1.20mm
  • Package: 0805 (2012 Metric)
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.40mm x 1.25mm
  • REACH: Unaffected
  • Standard Package: 3,000
