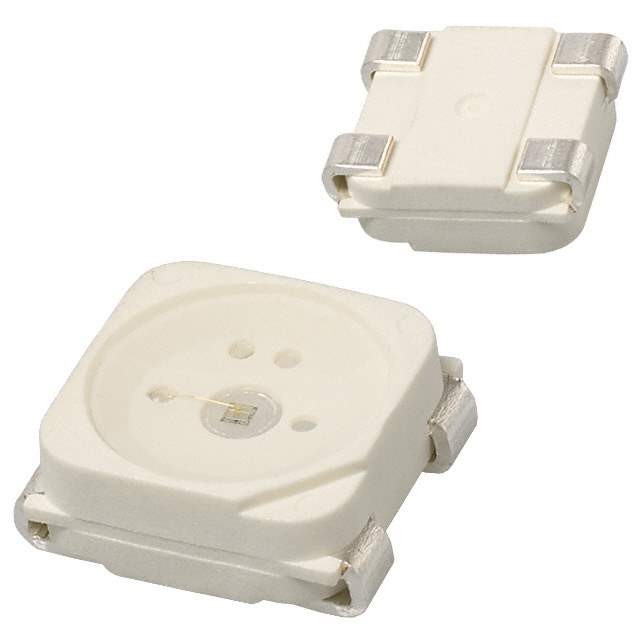

SML-LX1110USBC-BTR Real Image
Same model may have multiple batches, images only for reference.

SML-LX1110USBC-BTR

Part No SML-LX1110USBC-BTR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - Color
Description LED TITANBRITE BLUE 470NM 4PLCC / LED Lighting Color series Blue 470nm (Typ) 4-SMD, J-Lead
Datasheet
SML-LX1110USBC-BTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr Lumex Opto/Components Inc.
Series TitanBrite™
Package Tape & Reel (TR)
Color Blue
Wavelength 470nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.5V
Lumens/Watt @ Current - Test 6 lm/W
Current - Max 350mA
Luminous Flux @ Current/Temperature 7lm (Typ)
Temperature - Test 25°C
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 4-SMD, J-Lead
Supplier Device Package 4-PLCC
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.173" (4.40mm)
Base Product Number SML-LX1110
Other Names SMLLX1110USBCBTR,67-2017-1,67-2017-2,67-2017-6
Standard Package 500
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240297-SML-LX1110USBC-BTR
Ultra Librarian 3D Model Ultra Librarian SML-LX1110USBC-BTR CAD Model

Description

The SML-LX1110USBC-BTR is a blue LED lighting product from Lumex Opto/Components Inc.

  • Voltage - Forward (Vf) (Typ): 3.5V
  • Current - Max: 350mA
  • Viewing Angle: 120 degrees
  • Wavelength: 470nm (Typ)
  • Package: Tape and Reel
  • Standard Package: 500
  • Mounting: Surface Mount Device (SMD)
  • Height: 0.173 inches
  • Dimension: 0.394 inches by 0.394 inches
  • Series: TitanBrite™
  • REACH Status: Unaffected
