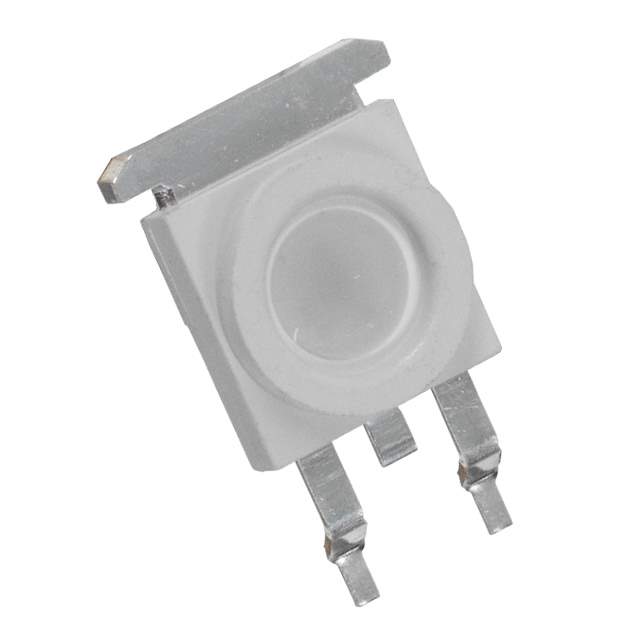

SML-LX1610UPGC/A Real Image
Same model may have multiple batches, images only for reference.

SML-LX1610UPGC/A

Part No SML-LX1610UPGC/A
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - Color
Description LED TITANBRITE GREEN 525NM SMD / LED Lighting Color series Green 525nm (Typ) TO-252-3, DPak (2 Leads + Tab), SC-63
Datasheet
SML-LX1610UPGC/A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr Lumex Opto/Components Inc.
Series TitanBrite™
Package Tube
Color Green
Wavelength 525nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3V
Current - Max 350mA
Temperature - Test 25°C
Viewing Angle 110°
Mounting SMD (SMT)
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package SMD
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SML-LX1610
Other Names SMLLX1610UPGCA,67-2039
Standard Package 50
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240293-SML-LX1610UPGC/A
Ultra Librarian 3D Model Ultra Librarian SML-LX1610UPGC/A CAD Model

Description

The Lumex Opto/Components Inc. SML-LX1610UPGC/A is a TitanBrite™ series green LED lighting color product.

  • Mounting Type: Surface Mount
  • Height: 0.130" (3.30mm)
  • Viewing Angle: 110°
  • Voltage - Forward (Vf) (Typ): 3V
  • Thermal Resistance of Package: -
  • Temperature Test: 25°C
  • Wavelength: 525nm (Typ)
