Same model may have multiple batches, images only for reference.

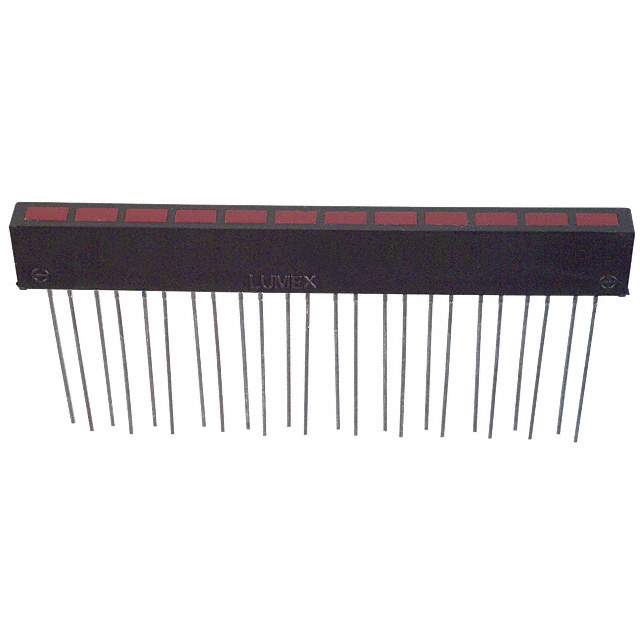

SSA-LXH1225SRD Real Image
Same model may have multiple batches, images only for reference.

SSA-LXH1225SRD

Part No SSA-LXH1225SRD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2.5X5MM 12-SEG SUP RED / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 12 Wide, SIP Red (x 12) Diffused, Tinted 1.7V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
Datasheet
SSA-LXH1225SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 12)
Wavelength - Peak 660nm
Configuration Bar - 12 Wide, SIP
Current 30mA
Millicandela Rating 10mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.00mm x 2.50mm
Voltage Rating 1.7V
Mounting Type Through Hole
Base Product Number SSA-LXH1225
Other Names LU2003B1,67-1212,67-1212R
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238199-SSA-LXH1225SRD
Ultra Librarian 3D Model Ultra Librarian SSA-LXH1225SRD CAD Model

Description

The SSA-LXH1225SRD is a bar of 12 red LEDs with a millicandela rating of 10mcd.

  • Viewing Angle: 110 degrees
  • Voltage Rating: 1.7V
  • Mounting Type: through-hole
  • Lens Style: rectangle, flat top
  • Lens Size: 5.00mm x 2.50mm
  • Package: bulk
  • Wavelength peak: 660nm
  • Current: 30mA
