Same model may have multiple batches, images only for reference.

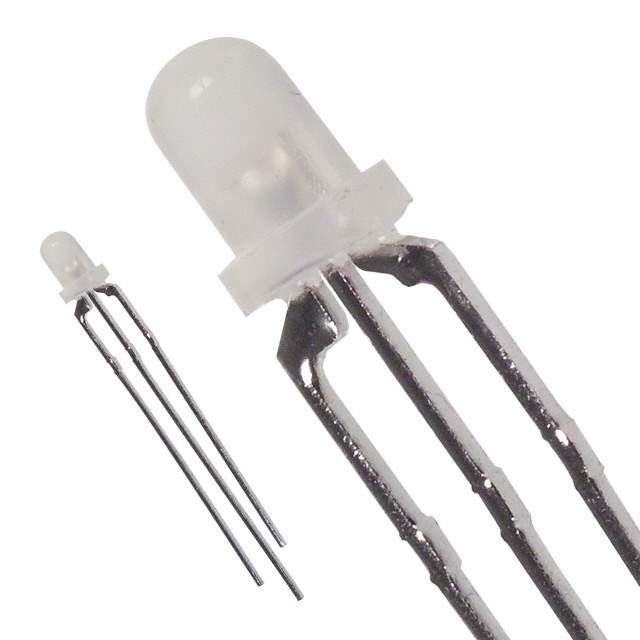

SSL-LX3059SISUGW Real Image
Same model may have multiple batches, images only for reference.

SSL-LX3059SISUGW

Part No SSL-LX3059SISUGW
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED DIFFUSED T-1 T/H / Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green, Red
Configuration Common Cathode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 90mcd Green, 240mcd Red
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 60°
Mounting Type Through Hole
Wavelength - Peak 574nm Green, 636nm Red
Package / Case Radial
Supplier Device Package T-1 (3mm)
Height (Max) 7.03mm
Base Product Number SSL-LX3059
Other Names 67-2255
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242162-SSL-LX3059SISUGW
Ultra Librarian 3D Model Ultra Librarian SSL-LX3059SISUGW CAD Model

Description

The Lumex Opto/Components Inc. LED indication is a discrete optoelectronic component that comes in a radial package.

  • Configuration: common cathode
  • Lens Color: white
  • Viewing Angle: 60°
  • Millicandela Rating: 90mcd for green and 240mcd for red
  • Forward Voltage: 2.2V for green and 2V for red
  • Current Rating: 20mA
