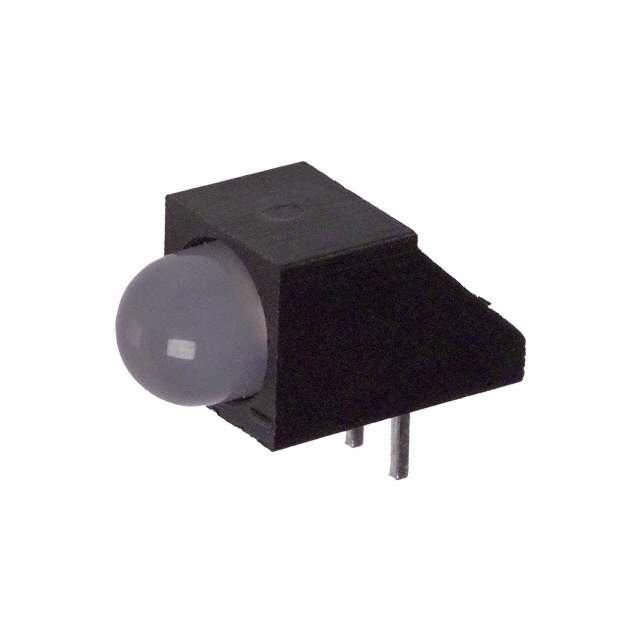

SSF-LXH100HGW Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100HGW

Part No SSF-LXH100HGW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MMRA RED/GRNDIFF BICLR PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 25mA Red Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100HGW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green, Red
Wavelength - Peak 565nm, 700nm
Configuration Single
Current 25mA Green, 25mA Red
Millicandela Rating 20mcd Green, 6mcd Red
Viewing Angle 60°
Lens Type Diffused, White
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V Green, 2V Red
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names 67-1221,67-1221R,SSFLXH100HGW,LU200715,Q801963
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238228-SSF-LXH100HGW
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100HGW CAD Model

Description

The SSF-LXH100HGW is an electronic component manufactured by Lumex Opto/Components Inc.

  • Component Type: Single configuration LED circuit board indicator
  • Viewing Angle: 60°
  • Package: Bulk
  • Voltage Rating: 2.2V (Green) and 2V (Red)
  • Millicandela Rating: 20mcd (Green) and 6mcd (Red)
  • Current: 25mA (Green) and 25mA (Red)
  • Usage: Designed for use in various electronic devices
