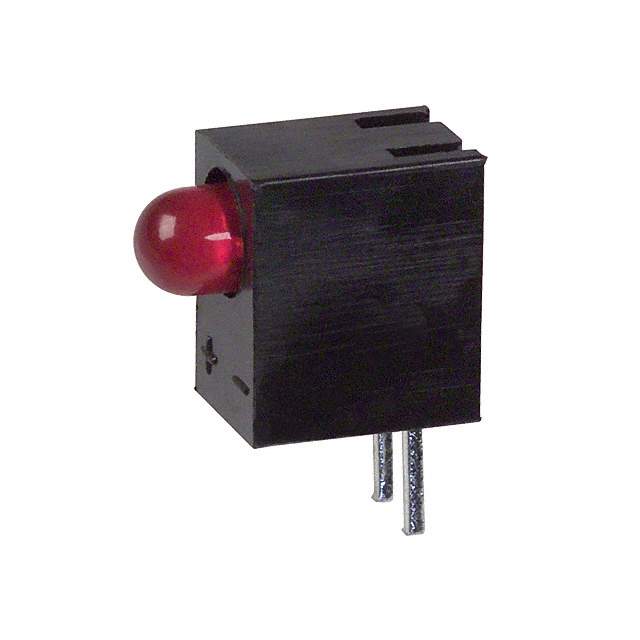

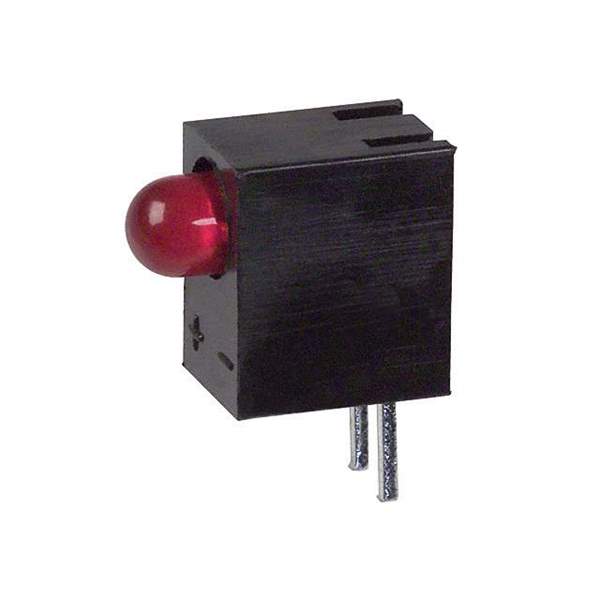

SSF-LXH103LID Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103LID

Part No SSF-LXH103LID
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA FAULT-IND RED PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH103LID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names LU20121,Q1638690A,67-1239,67-1239R,SSFLXH103LID
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238168-SSF-LXH103LID
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103LID CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH103LID is a red LED circuit board indicator with a viewing angle of 60° and a millicandela rating of 40mcd.

  • Manufacturer: Lumex Opto/Components Inc.
  • Color: Red
  • Viewing Angle: 60°
  • Millicandela Rating: 40mcd
  • Voltage Rating: 2V
  • Current: 20mA
  • Lens Type: Diffused and tinted
  • Mounting Type: Through hole, right angle
  • Package: Bulk
  • Standard Package: 500
  • REACH: Unaffected
  • ECCN: EAR99
