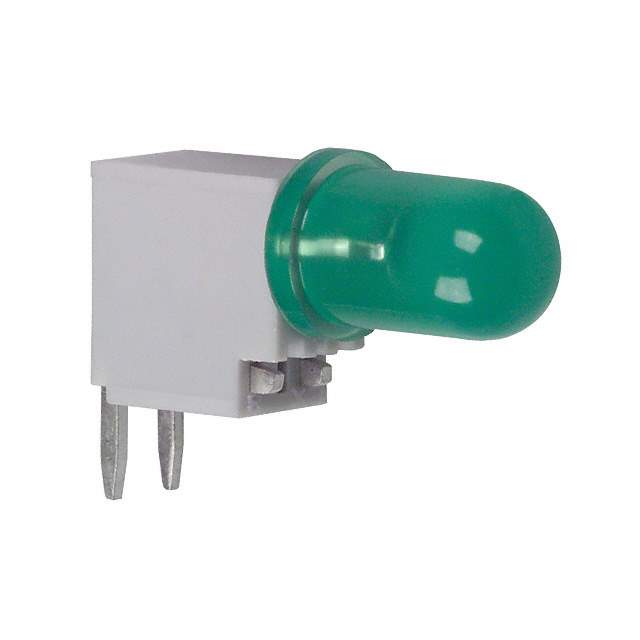

Same model may have multiple batches, images only for reference.

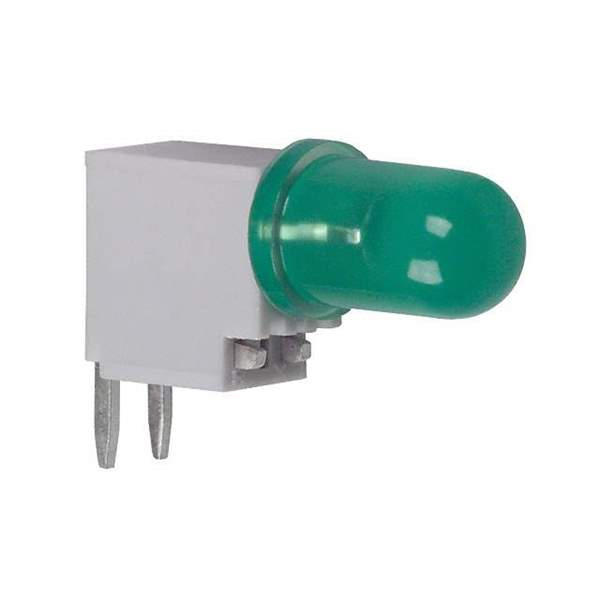

SSF-LXH4RA5LGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH4RA5LGD

Part No SSF-LXH4RA5LGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RELAMPABL GRN LOW I PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH4
Other Names 67-1298,67-1298R,LU20315
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238218-SSF-LXH4RA5LGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH4RA5LGD CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH4RA5LGD is a green LED, which is a through-hole mounted component with a right-angle lens style.

  • Lens Type: Diffused, Tinted
  • Lens Style: Round with a Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 30mcd
  • Peak Wavelength: 565nm
  • Voltage Rating: 2.1V
  • Current Rating: 20mA
  • Packaging: Bulk
  • Standard Package: 100
