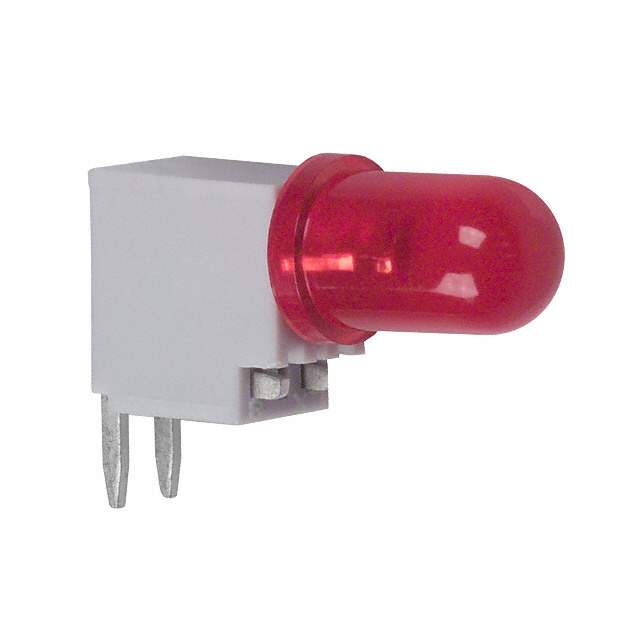

SSF-LXH4RA5LID Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH4RA5LID

Part No SSF-LXH4RA5LID
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RELAMPABL RED LOW I PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH4RA5LID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH4
Other Names LU20311,67-1297R,67-1297,SSFLXH4RA5LID
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238172-SSF-LXH4RA5LID
Ultra Librarian 3D Model Ultra Librarian SSF-LXH4RA5LID CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH4RA5LID is a through-hole right-angle LED that has a unique round with a domed top lens style.

  • Manufacturer: Lumex Opto/Components Inc.
  • Lens Style: Round with a domed top
  • Color: Red
  • Millicandela Rating: 40mcd
  • Viewing Angle: 60 degrees
  • Voltage Rating: 2.1V
  • Mounting: Through hole right-angle
  • Package Type: Bulk
  • Standard Package Quantity: 100
