Same model may have multiple batches, images only for reference.

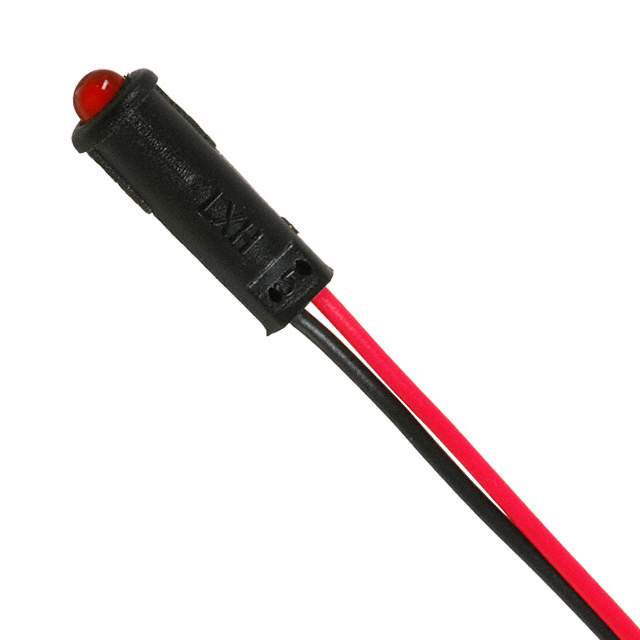

SSI-LXH312ID-150 Real Image
Same model may have multiple batches, images only for reference.

SSI-LXH312ID-150

Part No SSI-LXH312ID-150
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 3MM HI-I RED DIFF6"LDS PNLMT / LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)
Datasheet
SSI-LXH312ID-150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.17" (4.32mm)
Lens Size 3mm, T-1
Lens Style Round with Domed Top
Millicandela Rating 30mcd
Wavelength - Peak 635nm
Viewing Angle 60°
Termination Style Wire Leads - 6" (152.40mm)
Base Product Number SSI-LXH312
Other Names SSILXH312ID150,Q1381783,SSI-LXH312ID-120,67-1190R,LU10111,67-1190
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237807-SSI-LXH312ID-150
Ultra Librarian 3D Model Ultra Librarian SSI-LXH312ID-150 CAD Model

Description

The SSI-LXH312ID-150 is a red LED panel indicator or pilot light from Lumex Opto/Components Inc.

  • Viewing Angle: 60 degrees
  • Lens Transparency: Diffused Red
  • Millicandela Rating: 30mcd
  • Voltage: 2V
  • Current: 30mA
  • Wavelength Peak: 635nm
  • Panel Cutout Dimension: 0.17" (4.32mm)
  • Panel Cutout Shape: Round
  • Lens Style: Round with Domed Top
  • Lens Size: 3mm, T-1
