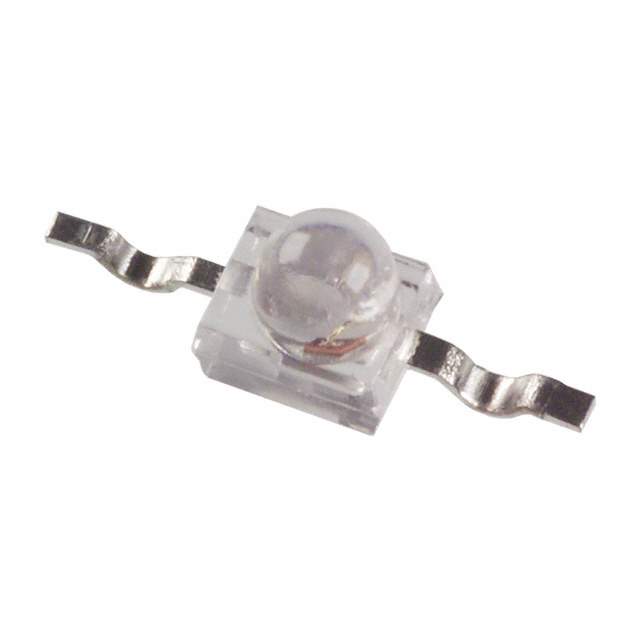

Same model may have multiple batches, images only for reference.

SSL-LXA228YC-TR21

Name: SSL-LXA228YC-TR21
Brand: Lumex Opto/Components Inc.
SKU: 1241837
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SSL-LXA228YC-TR21
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Indication - Discrete
Description	LED YELLOW CLEAR AXIAL SMD / Yellow LED Indication - Discrete 2V 2-SMD, Yoke Bend
Datasheet	SSL-LXA228YC-TR21 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Lumex Opto/Components Inc.
Package	Tape & Reel
Color	Yellow
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	30mcd
Lens Style	Round with Domed Top
Lens Size	1.90mm Dia
Voltage - Forward (Vf) (Typ)	2V
Current - Test	20mA
Viewing Angle	25°
Mounting Type	Surface Mount, Bottom Entry
Wavelength - Peak	585nm
Package / Case	2-SMD, Yoke Bend
Supplier Device Package	Axial
Dimension	2.50mm L x 2.00mm W
Height (Max)	2.90mm
Base Product Number	SSL-LXA228
Other Names	67-1389-2R,LU60487CT,67-1389-6,SSLLXA228YCTR21,67-1389-2,LU60487TR,67-1389-1R,67-1389-1
Standard Package	1,000
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1241837-SSL-LXA228YC-TR21
Ultra Librarian 3D Model	Ultra Librarian SSL-LXA228YC-TR21 CAD Model

Alternative Products

Description

The SSL-LXA228YC-TR21 is a yellow LED from Lumex Opto/Components Inc. that is ideal for use in electronic devices and equipment.

Viewing Angle: 25 degrees
Millicandela Rating: 30mcd
Voltage-Forward: 2V
Current-Test: 20mA
Wavelength Peak: 585nm
Lens Style: Round with a domed top
Lens Size: 1.90mm Dia
Height: 2.90mm
Mounting: Surface mountable
Package: 2-SMD, Yoke Bend
Packaging: Tape and reel with 1000 units
REACH: Unaffected
ECCN: EAR99
