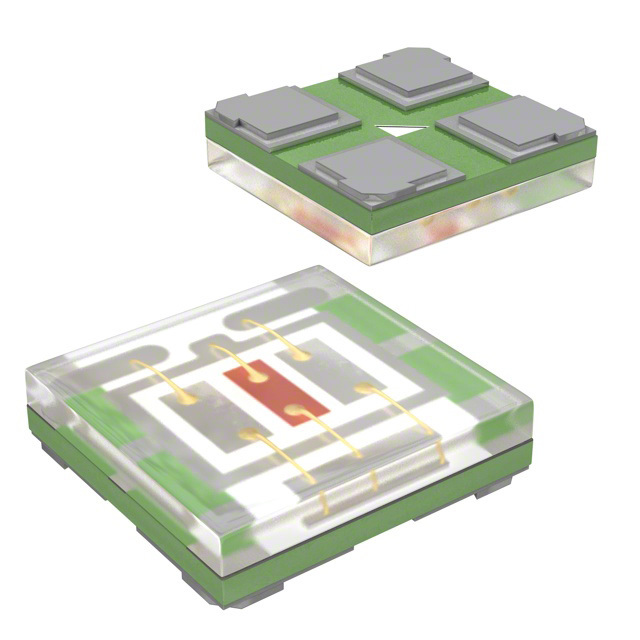

SML-LX0404SIUPGUSB Lumex Opto/Components Inc. SML-LX0404SIUPGUSB Real Image
Same model may have multiple batches, images only for reference.
SML-LX0404SIUPGUSB Lumex Opto/Components Inc. SML-LX0404SIUPGUSB Real Image
SML-LX0404SIUPGUSB Lumex Opto/Components Inc. SML-LX0404SIUPGUSB Real Image
Same model may have multiple batches, images only for reference.

SML-LX0404SIUPGUSB

Part No SML-LX0404SIUPGUSB
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RGB CLEAR SMD / 1.0 mm x 1.0mm P.C.B. SML, FULL COLOR, WATER CLEAR LENS, TAPE AND REEL
Datasheet
SML-LX0404SIUPGUSB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lumex Opto/Components Inc.
Packaging Reel
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd Red, 40mcd Green, 20mcd Blue
Lens Style Square with Flat Top
Lens Size 1.00mm
Voltage - Forward (Vf) (Typ) 1.95V Red, 2.85V Green, 2.73V Blue
Current - Test 2mA Red, 2mA Green, 2mA Blue
Viewing Angle 120°
Mounting Style SMD
Wavelength - Peak 632nm Red, 518nm Green, 465nm Blue
Manufacturer Package 0404 (1010 Metric)
Supplier Device Package SMD
Dimension 1.00mm L x 1.00mm W
Height (Maximum) 0.30mm
Manufacturer Pack Quantity 2,000
MSL Level 2 (1 Year)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802824-SML-LX0404SIUPGUSB
Ultra Librarian 3D Model Ultra Librarian SML-LX0404SIUPGUSB CAD Model

Description

The 802824-SML-LX0404SIUPGUSB from Lumex Opto/Components Inc. is a common anode RGB LED with a viewing angle of 120 degrees.

  • Viewing Angle: 120 degrees
  • Lens Style: Square with a flat top
  • Millicandela Rating (Red): 30mcd
  • Millicandela Rating (Green): 40mcd
  • Millicandela Rating (Blue): 20mcd
  • Forward Voltage (Red): 1.95V
  • Forward Voltage (Green): 2.85V
  • Forward Voltage (Blue): 2.73V
  • Test Current: 2mA (all colors)
  • Peak Wavelength (Red): 632nm
  • Peak Wavelength (Green): 518nm
  • Peak Wavelength (Blue): 465nm
  • Device Package: SMD 0404 (1010 metric)
  • Size: 1.00mm x 1.00mm
  • Maximum Height: 0.30mm
  • Packaging: 2,000
