Same model may have multiple batches, images only for reference.

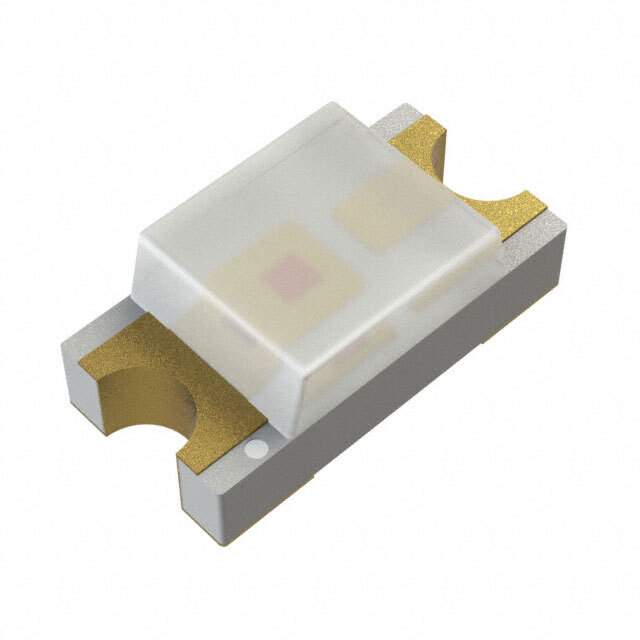

SML-LX0603USBW-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0603USBW-TR

Part No SML-LX0603USBW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED 470NM USBLU WHT DF 0603 T/R / Blue LED Indication - Discrete 3.3V 0603 (1608 Metric)
Datasheet
SML-LX0603USBW-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Blue
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 112.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 470nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.85mm
Base Product Number SML-LX0603
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 67-2305-1,67-2305-2,SML-LX0603USBW-TR-ND,67-2305-6
Standard Package 4,000
Win Source Part Number 1149306-SML-LX0603USBW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0603USBW-TR CAD Model

Description

The SML-LX0603USBW-TR is a blue LED indication discrete optoelectronic component from Lumex Opto/Components Inc.

  • Viewing Angle: 140 degrees
  • Lens Transparency: Diffused White
  • Millicandela Rating: 112.5mcd
  • Voltage-Forward (Vf): 3.3V @ 20mA
  • Wavelength Peak: 470nm
  • Height: 0.85mm
  • Package/Case: 0603 (1608 Metric)
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.00mm x 0.80mm
