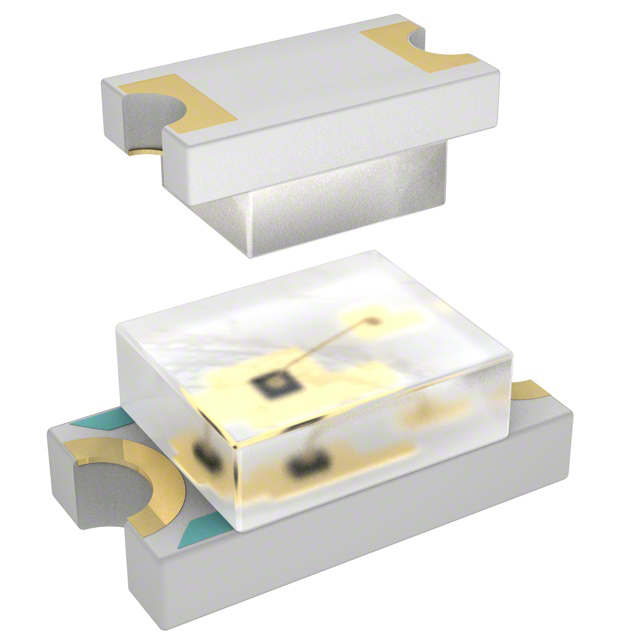

Same model may have multiple batches, images only for reference.
SML-LXF0805SRD-TR Lumex Opto/Components Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SML-LXF0805SRD-TR

Part No SML-LXF0805SRD-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFFUSED SMD
Datasheet
SML-LXF0805SRD-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Color Red
Configuration Independent
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 70mcd
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.24mm
Voltage - Forward (Vf) (Typ) 1.7V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Peak 660nm
Case / Package 0805 (2012 Metric)
Size / Dimension 2.00mm L x 1.25mm W
Height (Max) 1.20mm
Package Tape & Reel (TR);Cut Tape (CT);Reel
Supply and Demand Status Shortage
Win Source Part Number 1569054-SML-LXF0805SRD-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXF0805SRD-TR CAD Model

Description

N
