Same model may have multiple batches, images only for reference.

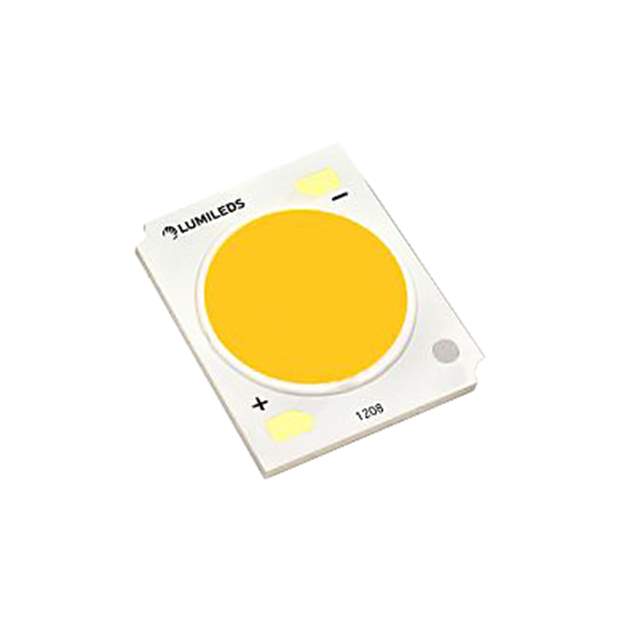

LHC1-2790-1208 Real Image
Same model may have multiple batches, images only for reference.

LHC1-2790-1208

Part No LHC1-2790-1208
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB LUXEON WARM WHITE SQUARE / High-efficacy LED with a small light emitting surface and greater uniformity of light
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lumileds
Packaging Tube
Part Status Obsolete (End Of Life)
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux at Current/Temperature - Test 2850lm (Typ)
Current - Test 900mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 35.5V
Lumens/Watt at Current - Test 90 lm/W
Current - Max 1.8A
CRI (Color Rendering Index) 90
Viewing Angle 100°
Dimension 24.00mm L x 20.00mm W
Height 1.50mm
Light Emitting Surface (LES) 15.00mm Dia
Lens Type Flat
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806740-LHC1-2790-1208
Ultra Librarian 3D Model Ultra Librarian LHC1-2790-1208 CAD Model

Description

The Lumileds white warm COB LED lighting component from Lumileds.

  • Viewing Angle: 100 degrees
  • Forward Voltage: 35.5V
  • Height: 1.50mm
  • Lens Type: Flat
  • CCT: 2700K
  • CRI: 90
  • Luminous Flux: 2850lm (typ) @ 900mA
  • Temperature Test: 85 degrees Celsius
  • Diameter: 15.00mm
  • Configuration: Square
  • Package: Tube
  • Maximum Current: 1.8A
