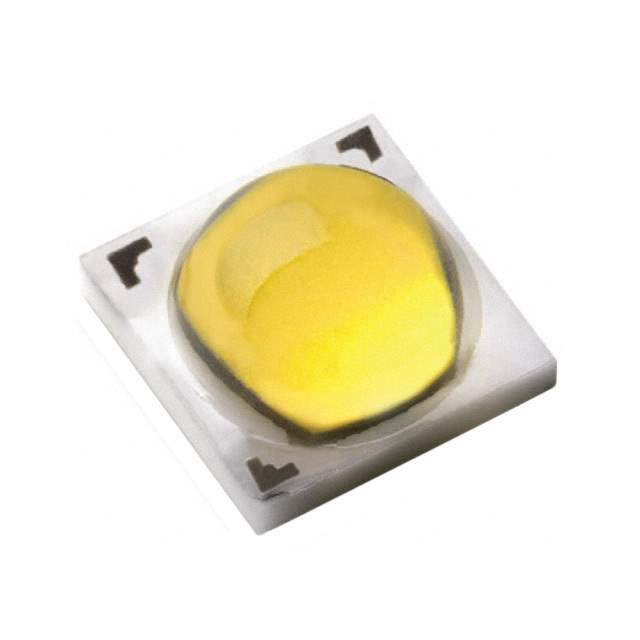

LXH8-FW27-3 Real Image
Same model may have multiple batches, images only for reference.

LXH8-FW27-3

Part No LXH8-FW27-3
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 2700K 3SMD  /  LED Lighting series White, Warm 2700K 3-Step MacAdam Ellipse 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad
Datasheet
LXH8-FW27-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON T
Package Tape & Reel
Product Status Obsolete
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 186lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 95 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead Exposed Pad
Dimension 0.146" L x 0.146" W (3.70mm x 3.70mm)
Height - Seated (Max) 0.083" (2.12mm)
Thermal Resistance of Package 3°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1010-2,1417-1010-6-ND,1417-1010-1-ND,1417-1010-2-ND,1416-1010-6,1417-1010-6,1417-1010-1,1417-1010-2,1416-1010-1
Standard Package 1,000
Win Source Part Number 995418-LXH8-FW27-3
Ultra Librarian 3D Model Ultra Librarian LXH8-FW27-3 CAD Model

Description

This LUXEON T series LED Lighting - White component from Lumileds has a Win Source Part Number of 995418-LXH8-FW27-3.

  • Package: Tape & Reel
  • Height Seated: 0.083" (2.12mm)
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Current Max: 1.2A
  • Viewing Angle: 120°
  • Voltage Forward (Vf) (Typ): 2.8V
  • Current Test: 700mA
  • CCT (K): 2700K 3-Step MacAdam Ellipse
  • Flux @ 85°C, Current - Test: 186lm (Typ)
  • Dimension: 0.146" L x 0.146" W (3.70mm x 3.70mm)
  • Alternative Parts (Cross-Reference): 1416-1010-2, 1417-1010-6-ND, 1417-1010-1-ND, 1417-1010-2-ND, 1416-1010-6, 1417-1010-6, 1417-1010-1, 1417-1010-2, 1416-1010-1
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.41.0000
