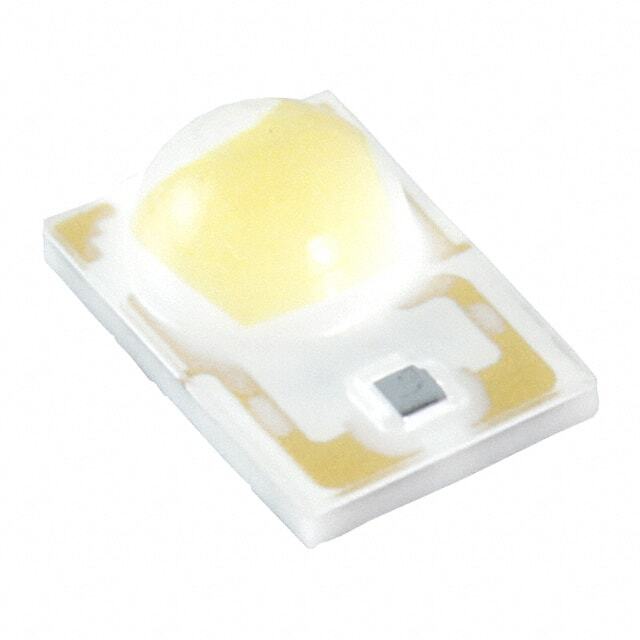

LXH8-PW50
Same model may have multiple batches, images only for reference.

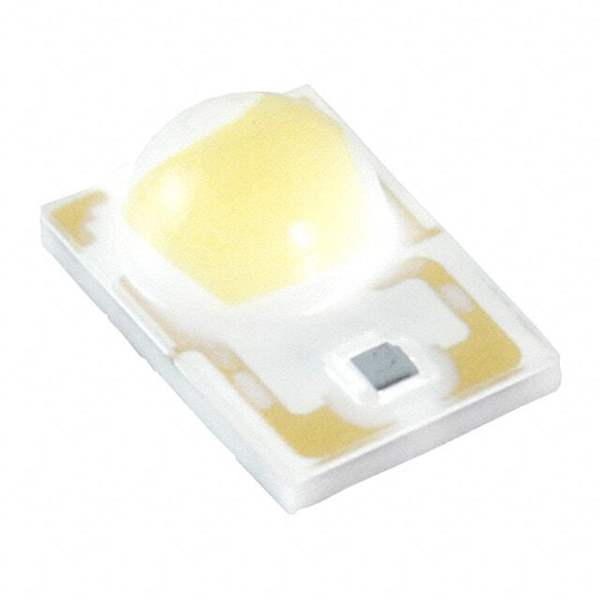

LXH8-PW50

Part No LXH8-PW50
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5000K 3SMD / LED Lighting LUXEON A White, Cool 5000K 3-Step MacAdam Ellipse 2.81V 700mA 120° 1812 (4532 Metric)
Datasheet
LXH8-PW50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr Lumileds
Series LUXEON A
Package Tape & Reel
Product Status Obsolete
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 190lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.81V
Lumens/Watt @ Current - Test 97 lm/W
CRI (Color Rendering Index) 80
Current - Max 1A
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 6°C/W
Base Product Number LXH8-PW
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 848977-LXH8-PW50
Ultra Librarian 3D Model Ultra Librarian LXH8-PW50 CAD Model

Description

The 848977-LXH8-PW50 is a white LED lighting component from the LUXEON A series. It emits a cool white color and comes in a tape & reel package.

  • Color: Cool white
  • Package: Tape & reel
  • Size: 0.177" L x 0.120" W
  • Seated Height: 0.083"
  • Maximum Current: 1A
  • Viewing Angle: 120°
  • Voltage Forward (Vf): 2.81V @ test current of 700mA
  • CCT (K): 5000K
  • Manufacturer: Lumileds
  • Product Status: Obsolete
