LXZ2-5770 Lumileds – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

LXZ2-5770

Part No LXZ2-5770
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5700K SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White, Cool
CCT (K) 5700K
Flux @ 85°C, Current - Test 245lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 125 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.2A
Viewing Angle 120°
Mounting Type Surface Mount
Case / Package 0806 (2016 Metric)
Supplier Device Package SMD
Size / Dimension 0.080" L x 0.065" W (2.04mm x 1.64mm)
Height - Seated (Max) 0.031\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1568775-LXZ2-5770
Ultra Librarian 3D Model Ultra Librarian LXZ2-5770 CAD Model

Description

N

You May Also Be Interested in

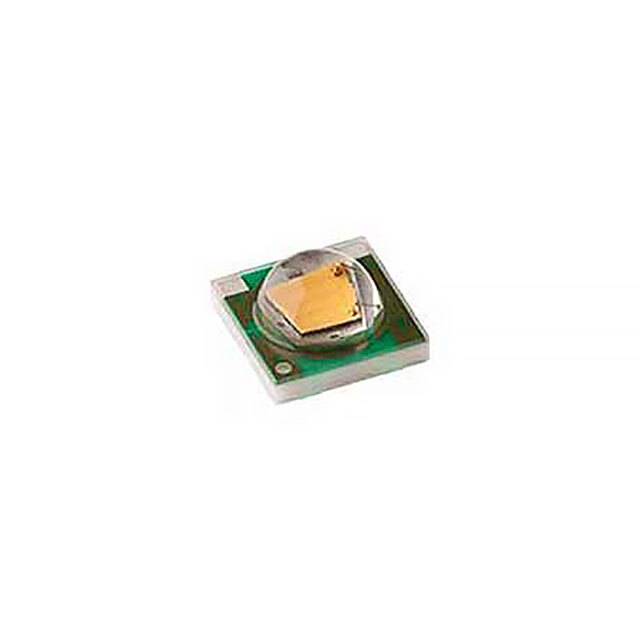

XTEAWT-00-0000-000000EF5 Real Image
