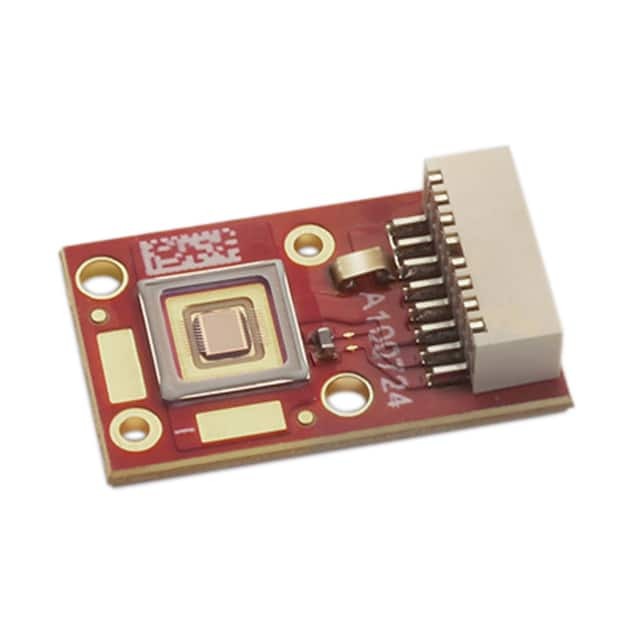

PT-39-R-C21-MPD
Same model may have multiple batches, images only for reference.

PT-39-R-C21-MPD

Part No PT-39-R-C21-MPD
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD PT-39 RED RECT
Datasheet
PT-39-R-C21-MPD Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr Luminus Devices Inc.
Series PT-39
Package Tray
Product Status Obsolete
Type LED Module
Color Red
Wavelength 623nm
Configuration Rectangle
Luminous Flux @ Current/Temperature 665lm (530lm ~ 800lm)
Current - Test 9.8A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 2.6V
Lumens/Watt @ Current - Test 26 lm/W
Current - Max 9.8A
Features With Connector
Size / Dimension 26.50mm L x 16.00mm W
Height 6.30mm
Light Emitting Surface (LES) 1.87mm L x 2.09mm W
Lens Type Flat
Base Product Number PT-39
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 930941-PT-39-R-C21-MPD
Ultra Librarian 3D Model Ultra Librarian PT-39-R-C21-MPD CAD Model

Description

The PT-39 is a high-quality LED module designed for optoelectronics applications.

  • Size: 26.50mm x 16.00mm
  • Height: 6.30mm
  • Maximum Current: 9.8A
  • Forward Voltage: 2.6V
  • Configuration: Rectangular
  • Viewing Angle: Wide
  • Wavelength: 623nm
  • Color: Red
  • Luminous Flux: 665lm
  • Luminous Efficacy: 26 lm/W
  • Manufacturer: Luminus Devices Inc.
