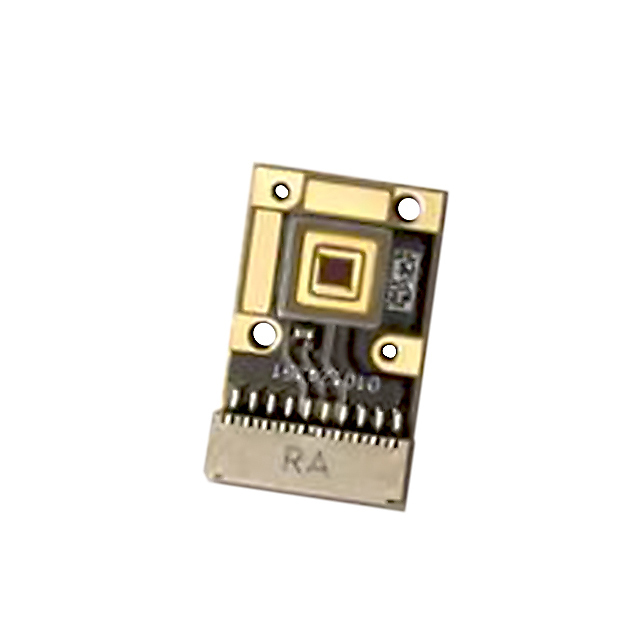

PT-54-RAX-L35-MPH Luminus Devices Inc. PT-54-RAX-L35-MPH Real Image PT-54-RAX-L35-MPH real image
Same model may have multiple batches, images only for reference.
PT-54-RAX-L35-MPH Luminus Devices Inc. PT-54-RAX-L35-MPH Real Image PT-54-RAX-L35-MPH real image
PT-54-RAX-L35-MPH Luminus Devices Inc. PT-54-RAX-L35-MPH Real Image PT-54-RAX-L35-MPH real image
Same model may have multiple batches, images only for reference.

PT-54-RAX-L35-MPH

Part No PT-54-RAX-L35-MPH
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description BIG CHIP LED HB MODULE RED-AMBER
Datasheet
PT-54-RAX-L35-MPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Luminus Devices Inc.
Series PT-54
Packaging Tray
Type LED Module
Color Amber
Wavelength 613nm
Configuration Rectangle
Flux @ Current/Temperature - Test 1213 lm (990 lm ~ 1435 lm)
Current - Test 13.5A
Temperature - Test 40°C
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 30 lm/W
Features With Connector
Dimension 26.50mm L x 16.00mm W
Height 6.40mm
Light Emitting Surface (LES) 2.00mm L x 2.70mm W
Lens Type Flat
Win Source Part Number 792661-PT-54-RAX-L35-MPH
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PT-54-RAX-L35-MPH CAD Model

Description

The Luminus Devices Inc. PT-54 LED module is a rectangular-shaped amber-colored module with a connector.

  • Forward Voltage (Vf): 3V
  • Current Test: 13.5A
  • Height: 6.40mm
  • Lens Type: Flat
  • Wavelength: 613nm
  • Lumens/Watt at Current Test: 30 lm/W
  • Flux at Current/Temperature - Test: 1213 lm (990 lm ~ 1435 lm)
  • Temperature Test: 40°C
  • Light-Emitting Surface (LES): 2.00mm L x 2.70mm W
  • Module Dimension: 26.50mm L x 16.00mm W
  • Category: Optoelectronics
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity Per Package: 50
