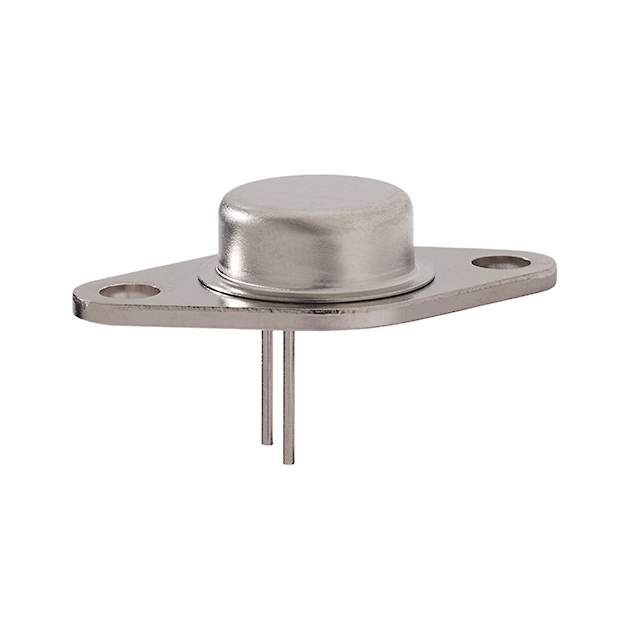

JANTX2N3741 Real Image
Same model may have multiple batches, images only for reference.

JANTX2N3741

Part No JANTX2N3741
Manufacturer M/A-Com Technology Solutions
Catalog Transistors (BJT) - Single
Description PNP POWER SILICON TRANSISTOR | TRANS PNP 80V 4A TO-66
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 4A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) at Ib, Ic 600mV at 1.25mA, 1A
Current - Collector Cutoff (Maximum) 10μA
DC Current Gain (hFE) (Minimum) at Ic, Vce 30 at 250mA, 1V
Maximum Power 3W
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-213AA, TO-66-2
Supplier Device Package TO-66 (TO-213AA)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191503-JANTX2N3741
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX2N3741 CAD Model

Description

The JANTX2N3741 is a PNP transistor used in discrete semiconductor products.

  • Collector Current: 4A
  • Voltage Breakdown: 80V
  • DC Current Gain: 30 @ 250mA, 1V
  • Package: TO-66 (TO-213AA)
  • Mounting: Through a hole
  • Temperature Range: -65°C to 200°C
  • Manufacturer: M/A-Com Technology Solutions
  • Popularity: Medium
  • Supply and demand status: Limited
