Same model may have multiple batches, images only for reference.

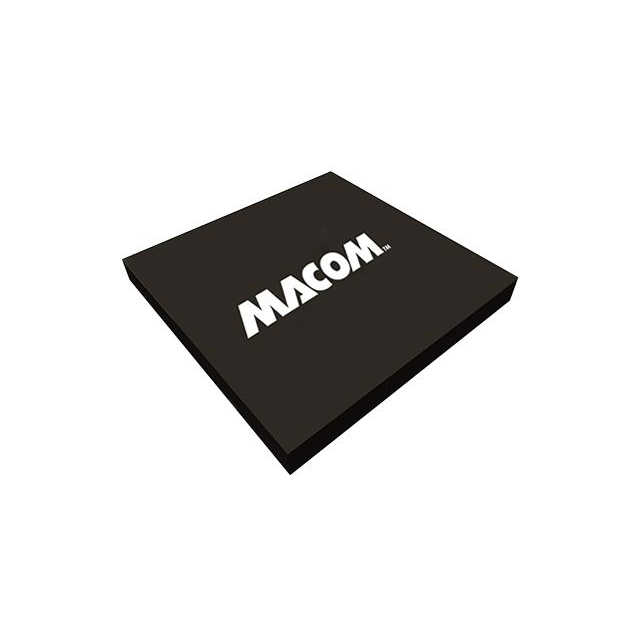

MA46H200-1056 Real Image
Same model may have multiple batches, images only for reference.

MA46H200-1056

Part No MA46H200-1056
Manufacturer M/A-Com Technology Solutions
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE,VARACTOR,1.25 GAMMA, GAAS  /  Varactors Single 22 V Surface Mount ODS-1056
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Variable Capacitance (Varicaps, Varactors)
Mfr MACOM Technology Solutions
Package Tray
Capacitance @ Vr, F 0.7pF @ 4V, 1MHz
Capacitance Ratio 3
Capacitance Ratio Condition C2/C20
Voltage - Peak Reverse (Max) 22 V
Diode Type Single
Q @ Vr, F 1500 @ 4V, 1MHz
Temperature Range - Operating -65°C ~ 150°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package ODS-1056
Base Product Number MA46H200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1465-MA46H200-1056
Standard Package 50
Win Source Part Number 1212263-MA46H200-1056
Ultra Librarian 3D Model Ultra Librarian MA46H200-1056 CAD Model

Description

This diode is a variable capacitance diode that can be used in various electronic devices.

  • Capacitance: 0.7pF @ 4V and 1MHz
  • Peak Reverse Voltage: 22V
  • Capacitance Ratio: 3
  • Package: 2-SMD, No Lead
  • Mounting Type: SMD (SMT)
  • RoHS Compliant: Yes
  • ECCN: EAR99
