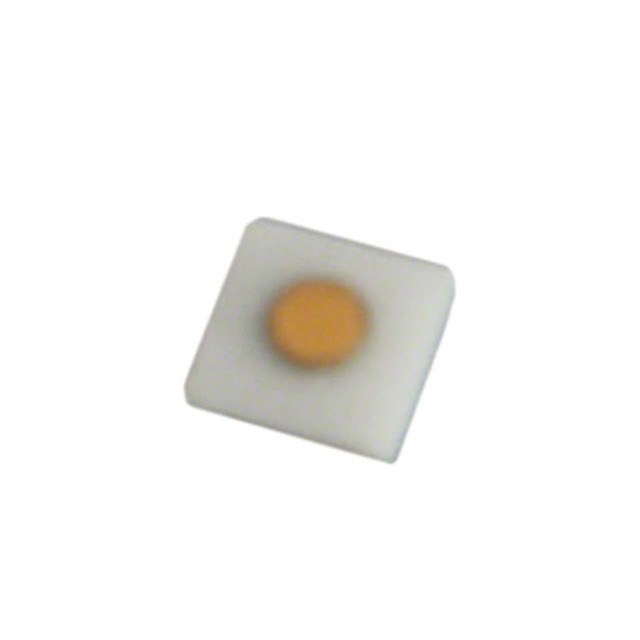

Same model may have multiple batches, images only for reference.
MA4P604-131 M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MA4P604-131

Part No MA4P604-131
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description PIN Diode Chips | RF DIODE PIN 1000V DIE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Bulk
Diode Type PIN - Single
Voltage - Peak Reverse (Maximum) 1000V
Capacitance at Vr, F 0.3pF at 100V, 1MHz
Resistance at If, F 1Ohm at 100mA, 100MHz
Temperature Range - Operating 175°C
Manufacturer Package Die
Supplier Device Package Die
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1211452-MA4P604-131
Manufacturer Homepage www.macom.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MA4P604-131 CAD Model

Description

The M/A-Com Technology Solutions MA4P604-131 is a PIN diode designed by M/A-Com Technology Solutions.

  • Diode Type: single diode
  • Package: die package
  • Maximum Peak Reverse Voltage: 1000V
  • Capacitance: 0.3pF @ 100V, 1MHz
  • Resistance @ If, F: 1Ohm @ 100mA, 100MHz
  • Operating Temperature Range: -65°C to 175°C
  • Popularity: commonly used and has high popularity in the market
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (unlimited)
  • Usage: widely used in discrete semiconductor products
