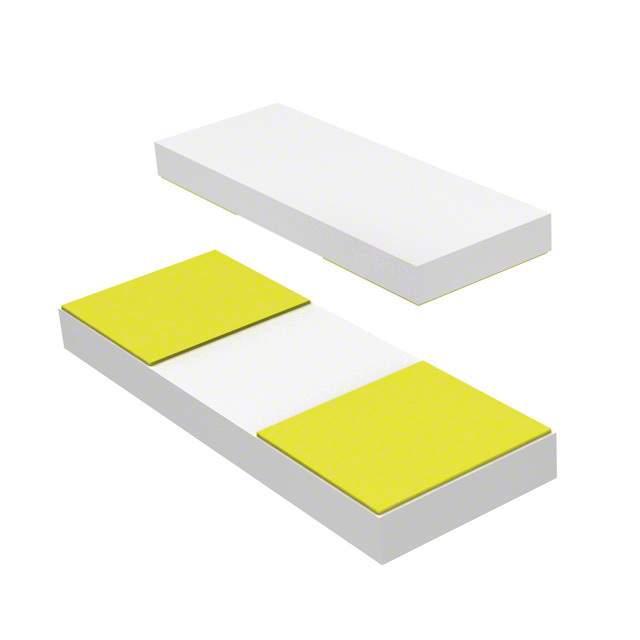

MA4SPS402 Real Image
Same model may have multiple batches, images only for reference.

MA4SPS402

Part No MA4SPS402
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description RF DIODE PIN 100V 2SMD  /  RF Diode PIN - Single 100V 250 mA 2-SMD
Datasheet
MA4SPS402 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Series HMIC™
Package Tray
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 100V
Current - Max 250 mA
Capacitance @ Vr, F 0.06pF @ 40V, 1MHz
Resistance @ If, F 5.8Ohm @ 10mA, 1GHz
Temperature Range - Operating 175°C (TJ)
Package / Case 2-SMD, No Lead
Supplier Device Package 2-SMD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-1047
Standard Package 100
Win Source Part Number 984389-MA4SPS402
Ultra Librarian 3D Model Ultra Librarian MA4SPS402 CAD Model

Description

The M/A-Com Technology Solutions MA4SPS402 is a PIN diode designed for use in RF applications and manufactured by M/A-Com Technology Solutions.

  • Maximum Current Rating: 250 mA
  • Peak Reverse Voltage Rating: 100V
  • Capacitance: 0.06pF @ 40V and 1MHz
  • Resistance: 5.8Ohm @ 10mA and 1GHz
  • Package: 2-SMD, no lead
  • Supplied: tray format with 100 pieces per package.
