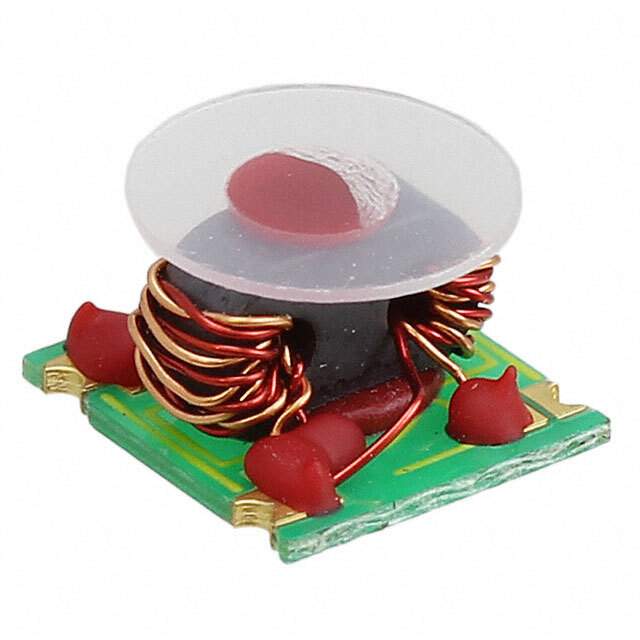

MABA-009210-CT1760 Real Image
Same model may have multiple batches, images only for reference.

MABA-009210-CT1760

Part No MABA-009210-CT1760
Manufacturer M/A-Com Technology Solutions
Catalog Balun
Description 1:1 Transmission Line Balun Transformer 50 - 1200 MHz | BALUN 50MHZ-1.2GHZ 1:1 4SMD
Datasheet
MABA-009210-CT1760 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency Range 50MHz ~ 1.2GHz
Insertion Loss (Maximum) 1.93dB
Manufacturer Package 4-SMD, No Lead
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211595-MABA-009210-CT1760
Manufacturer Homepage www.macomtech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MABA-009210-CT1760 CAD Model

Description

The M/A-Com Technology Solutions 1211595-MABA-009210-CT1760 is a high-performance RF/IF and RFID component designed for a frequency range of 50MHz to 1.2GHz.

  • Manufacturer: M/A-Com Technology Solutions
  • Product: 1211595-MABA-009210-CT1760
  • Frequency Range: 50MHz to 1.2GHz
  • Package: 4-SMD, no lead
  • Mounting: SMT
  • Insertion Loss: Maximum 1.93dB
  • Return Loss: No minimum
  • Packaging: Reel
  • Popularity: Medium
  • MSL Level: 1 (unlimited)
